Home / Ultrasonic Insert, 5/16"-18, 9/16 in L, 0.469 in Insert Dia., 0.406 in Tapered End Dia., Brass
Ultrasonic Insert, 5/16

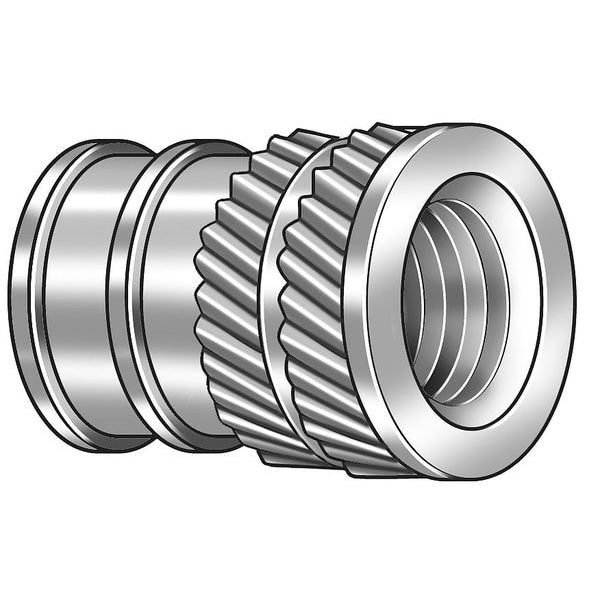

Ultrasonic Insert, 5/16"-18, 9/16 in L, 0.469 in Insert Dia., 0.406 in Tapered End Dia., Brass

  • GENERIC
  • Adhesives, Epoxy & Sealants, Raw Materials
  • Heat-Set Insert, Insert Type Heat-Set Insert, System of Measurement Inch, Insert Diameter 15/32 in, Overall Length 9/16 in, Thread Size 5/16 In.-18, Thread Direction Right Hand, Thread Type Coarse, Material Brass, Shank Type Tapered, Tapered End Diameter 0.406 in, Flange Style Flush, Number of Vanes 2, Compatible Material Thermoplastic, Drill Bit Size 0.401 in, Minimum Material Thickness 1/4 in, Maximum Hole Diameter 0.448 in, Features Pull-Out Resistance, Finish Plain

    graingerSKU: , mscSKU: , zoro_no: G7994323, mongo_id: 65bbe8b722d7a989a990e4e4

Web Price
$156.36 / each

Product Details

Thermoplastics
Taiwan, Province of China
0.401 in
Flush
0.469 in
Ultrasonic Horn; Heat Driver
Brass
1/4 in
2
9/16 in
500
Tapered
Inch
0.406 in
Right Hand
5/16-18
UNC
