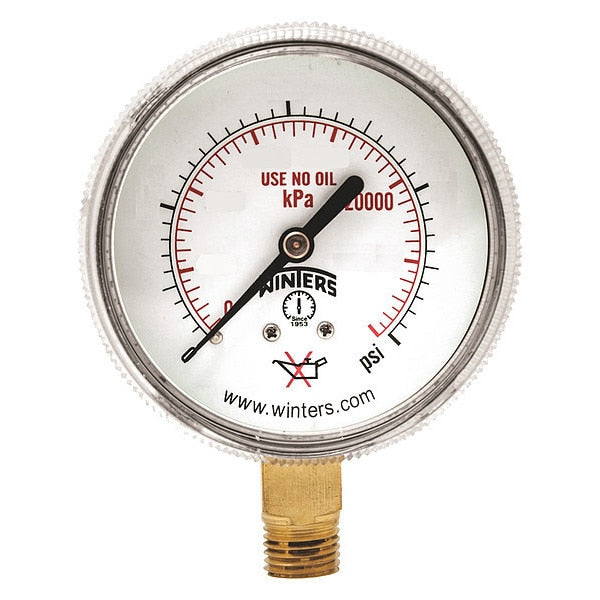

Pressure Gauge, 0 to 600 psi, 1/4 in MNPT, Brass

Home / Pressure Gauge, 0 to 600 psi, 1/4 in MNPT, Brass

Pressure Gauge, 0 to 600 psi, 1/4 in MNPT, Brass

SKU
Brand Winters
Categories Raw Materials
Description Pressure Gauge,2" Dial Size,Brass
graingerSKU: 491D44, mscSKU: , zoro_no: G9361640, mongo_id: 65bbe7883aaddbd5a909ef3f

Web Price

$12.49 / each

Qty

Product Details

Accuracy +/-3-2-3%

Accuracy Grade ASME B40.100 Grade B

Accuracy Scale Mid-Scale

Adjustable Pointer No

Ambient Operating Temperature Range -40 Degrees to 150 Degrees F

Bezel Material Polished Brass

Bezel Mounting Type Threaded

Blowout Safety Back No

Burst Pressure 4,000 psi

Calibration Certificate Included No

Case Color Gold

Case Construction Welded Joint

Case Depth 1.14 in

Case Diameter 2.25 in

Case Finish Polished

Cleaned for Oxygen Service No

Compatible Process Media Bronze

Connection Location Bottom

Connection Size 1/4 in NPT

Country of Origin (subject to change) China

Dial Color White

Dial Face Material Aluminum

Features Non Sparking Materials

For Use With Media Compatible with Bronze

Freeze Resistant Movement No

Gauge Accuracy +/-3-2-3%

Gauge Accuracy Grade Grade B - Commercial

Gauge Case Color Gold

Gauge Case Material Brass

Gauge Connection Location Bottom

Gauge Connection Size 1/4 in

Gauge Connection Type MNPT

Gauge Lens Material Polycarbonate

Gauge Nominal Dial Size 2 in

Gauge Primary Range Numbered Graduations 100/1000

Gauge Primary Range Smallest Graduation 50/500

Gauge Primary Range Units psi

Gauge Primary Range Values 0 to 600

Gauge Secondary Range Units kPa

Gauge Secondary Range Values 0 to 4140

Gauge Sensor Material Brass

Gauge Socket Material Brass

Gauge Wetted Parts Brass / Bronze

Hazardous Location Rating Not Rated

Includes Mounting Hardware No

IP/NEMA Rating IP52

Lens Material Polycarbonate

Lens Material - Gauge Plastic

Liquid Filled No

Manufacturer Warranty Length 5 yr

Manufacturers Warranty Length 5 yr

Movement Material Brass

Nominal Dial Size 2 in

Non-Sparking Yes

Operating Temp. Range -40 Degrees to 150 Degrees F

Over-Pressure Limit 25% of Full Scale

Package Quantity 1

Panel-Mountable No

Pointer Color Black

Pointer Material Aluminum

Pressure Gauge Type Welding Regulator Gauge

Pressure Range Type Pressure

Primary Pressure Range 0 to 600

Primary Pressure Scale Color Black

Primary Scale Minor Graduations 50, 500

Primary Scale Numeric Increments 100, 1,000

Primary Scale Units psi

Process Connection Gender Male

Process Connection Location Bottom

Process Connection Size 1/4 in

Process Connection Type NPT

Process Temperature Range -40 Degrees to 150 Degrees F

Range 0 to 600 psi

Removable Bezel Yes

Scale Type Dual

Secondary Pressure Range 0 to 4,140

Secondary Pressure Scale Color Red

Secondary Range 0 to 4,140 kPa

Secondary Scale Units kPa

Sensor Material Phosphor Bronze

Sensor Type Bourdon Tube

Series PWL

Smallest Graduation 10 psi/100 kPa

Socket Material Brass
