Home / Pump Mtr, 3ph, 20hp, 1775,208-230/460,256JP

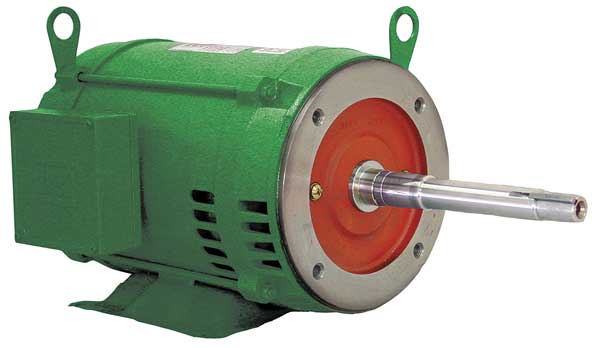

Pump Mtr, 3ph, 20hp, 1775,208-230/460,256JP

Pump Mtr, 3ph, 20hp, 1775,208-230/460,256JP

  • Weg
  • Pumps
  • Close-Coupled Pump Motor, Body Dia. 14.3 in, Bolt Circle Dia. 7 1/4 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 256JP, Hz 60, Full Load Amps 45.5-50.6/25.3, Height 14 3/8 in, HP 20 hp, HP @ 50Hz 15, Ins. Class F, Inverter Rated Yes, Inverter Rating 1000:1, Length Less Shaft 19 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase

    graingerSKU: 4EUN7, mscSKU: , zoro_no: G2417265, mongo_id: 65bbe7753aaddbd5a9096562

Web Price
$2,902.49 / each
Qty

Product Details

Centrifugal Close-Coupled Pumps Where the Pump Impeller is Mounted Directly to the Threaded Motor Shaft
14.3 in
7 1/4 in
CC029A
Exterior
F1
Multiple
Continuous
Continuous
256JP
Cast Iron
45.5-50.6/25.3
NEMA Premium Rated
Product Contributes To Reducing Energy Consumption
14 3/8 in
15
20 hp
60
F
Yes
1000:1
19 in
3 yr
40 Degrees C
Pump
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Cast Iron
Horizontal
Face/Base
1.25
JP Threaded
CW/CCW
Close-Coupled Pump
None
1,765
B
1
93 %
27 1/8 in
1
Three
Regreasable Bearings
1,470
1,701-1,800
1
1 1/4 in
1-1/4
8 1/8 in
Carbon Steel
JP Threaded
CSA (LR38324), UL (E104590)
No
Yes
208-230/460V AC
380/400/415
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
2ACD4
305 lb
