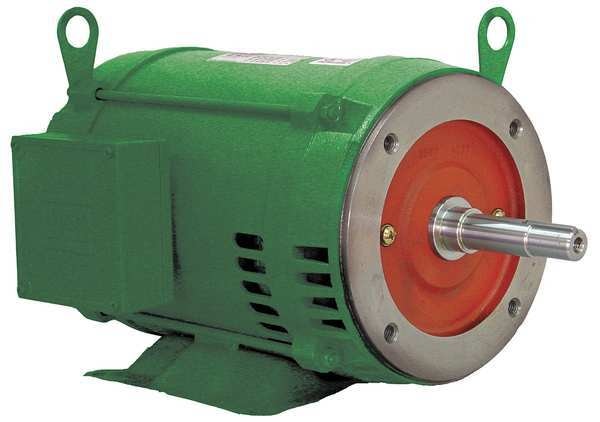

Pump Motor, 3-Ph, 75 HP, 1780,460V, 365JM

Home / Pump Motor, 3-Ph, 75 HP, 1780,460V, 365JM

Pump Motor, 3-Ph, 75 HP, 1780,460V, 365JM

SKU
Brand Weg
Categories Pumps
Description Close-Coupled Pump Motor, Body Dia. 21.2 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 365JM, Hz 60, Full Load Amps 83.5, Height 21 1/4 in, HP 75 hp, HP @ 50Hz 50, 75, Ins. Class F, Inverter Rated Yes, Inverter Rating 1000:1, Length Less Shaft 23 7/8 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
graingerSKU: 4EUW8, mscSKU: , zoro_no: G9871653, mongo_id: 65bbe83b9a749db82277e7e5

Web Price

$8,494.99 / each

Qty

Product Details

Application Centrifugal Close-Coupled Pumps Where the Pump Impeller is Mounted Directly to the Threaded Motor Shaft

Body Dia. 21.2 in

CC Number CC029A

Conduit Box Location Exterior

Conduit Box Position F1

Country of Origin (subject to change) Multiple

Duty Continuous

Duty Cycle Continuous

Frame 365JM

Frame Material Cast Iron

Full Load Amps 83.5

Green Certification or Other Recognition NEMA Premium Rated

Green Environmental Attribute Product Contributes To Reducing Energy Consumption

Height 21 1/4 in

HP @ 50Hz 50, 75

HP_ 75 hp

Hz_ 60

Ins. Class F

Inverter Rated Yes

Inverter Rating 1000:1

Length Less Shaft 23 7/8 in

Manufacturers Warranty Length 3 yr

Max. Ambient Temp. 40 Degrees C

Motor Application Pump

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Open Dripproof

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Face/Base

Motor Service Factor 1.15

Motor Shaft Design JM Threaded

Motor Shaft Rotation CW/CCW

Motor Sub Application Close-Coupled Pump

Motor Thermal Protection None

Nameplate RPM 1,780

NEMA Design B

No. of Speeds 1

Nominal Efficiency 95 %

Overall Length 29 1/8 in

Package Quantity 1

Phase Three

Regreasable Bearings Regreasable Bearings

RPM @ 50Hz 1,485

RPM Range 1,701-1,800

Service Factor @ 50Hz 1.15

Shaft Dia. 1 1/4 in

Shaft Dia. (In.) 1-1/4

Shaft Length 5 1/4 in

Shaft Material Carbon Steel

Shaft Type JM Threaded

Standards CSA (078282-0)

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage @ 50Hz 380/400/415

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 856 lb
