Home / Vane Pump, 8 gpm @ 1200 rpm and 100 psi

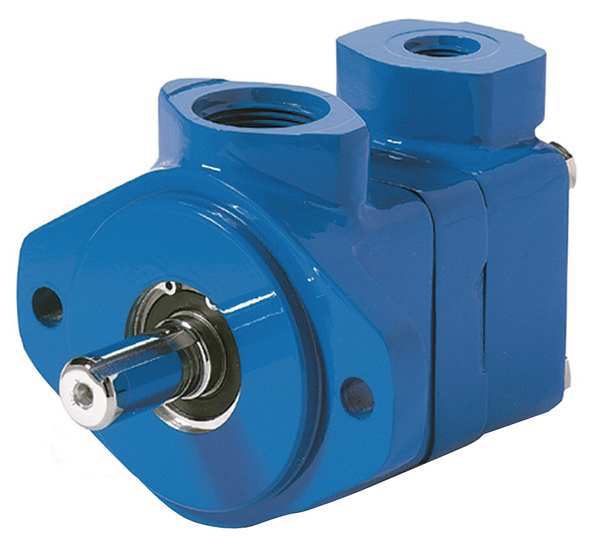

Vane Pump, 8 gpm @ 1200 rpm and 100 psi

Vane Pump, 8 gpm @ 1200 rpm and 100 psi

  • Vickers
  • Pumps
  • Single Vane Pump, Flow Rate - Maximum 8 gpm, Displacement per Revolution 1.62 cu in/rev, Media Intake Connection Size 1 1/4 in, Discharge Connection Size 3/4 in, Discharge Connection Type NPT, Rotation CW, Mounting Type SAE A 2 Bolt Flange, Shaft Type Keyed, Motor Speed - Maximum 1,800 RPM, Shaft Outer Diameter 1 in, Operating Pressure - Maximum 172 bar, Housing Material Cast Iron, Media Intake Connection Type NPT, Motor Speed - Minimum 1,800 RPM, Overall Height 4.8 in, Overall Length 7.8 in

    graingerSKU: , mscSKU: , zoro_no: G3004316, mongo_id: 65bbe5b33aaddbd5a9fdedff

Web Price
$1,301.24 / each
Qty

Product Details

Lifts, Mobile Equipment, Power Units
United States
3/4 in
NPT
1.62 cu in/rev
1.62 cu in/rev
8 gpm @ 1200 rpm and 100 psi
8 gpm
Cast Iron
1.25 in NPT
2,500 psi
1,800 RPM
1 1/4 in
NPT
600 RPM
1,800 RPM
1,800 RPM
SAE A 2 Bolt Flange
172 bar
3/4-16 Straight Thread
4.8 in
7.8 in
5.1 in
1
Inline With Inlet
CW
Buna-N
Lip
1 in
Right
1 in
Keyed
Keyed
