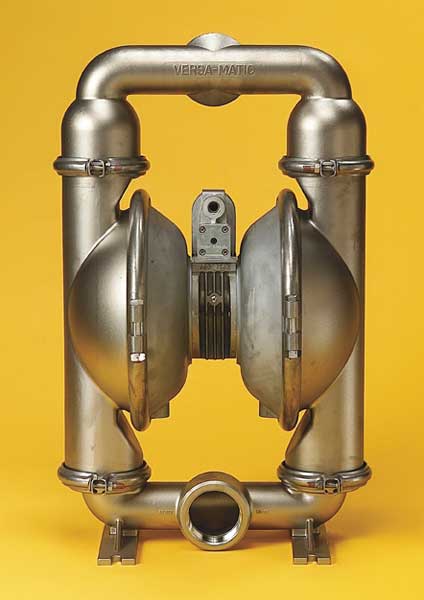

Double Diaphragm Pump, Stainless steel, Air Operated, Santoprene

SKU
Brand Versa-Matic
Categories Pumps
Description Double Diaphragm Pump, Air Intake Connection Size 1/2 in, Air Intake Connection Type NPT, Check Seat Material Santoprene, Diaphragm Material Santoprene, Feet of Head (Maximum) 320 ft, Flow Rate (Maximum) 273 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3 in, Media Discharge Connection Type NPT, Media Discharge Location Center, Top, Media Intake Connection Size 3 in, Media Intake Connection Type NPT, Media Intake Location Bottom, Center
graingerSKU: 4GGG2, mscSKU: , zoro_no: G1692056, mongo_id: 65bbe63d3aaddbd5a90186bd

Web Price

$10,166.24 / each

Qty

Product Details

Agency Compliance ABS, ATEX, CE, EAC

Air Inlet 1/2 in NPT

Air Inlet Size 1/2 in FNPT

Air Intake Connection Size 1/2 in

Air Intake Connection Type NPT

Air Intake Pressure (Maximum) 125 psi

Ball Material Santoprene(R)

Body Material Stainless steel

Check Seat Material Santoprene

Connection Style NPT

Country of Origin (subject to change) United States

Diaphragm Material Santoprene

Diaphragm Material - Pumps Santoprene(R)

Duty Cycle Continuous

Feet of Head (Maximum) 320 ft

Flow Rate (Maximum) 273 gpm

Flow Rate @ 10 psi 120 gpm

Flow Rate @ 100 psi 90 gpm

Flow Rate @ 120 psi 22 gpm

Flow Rate @ 15 psi 16 gpm

Flow Rate @ 20 psi 140 gpm

Flow Rate @ 30 psi 78 gpm

Flow Rate @ 40 psi 124 gpm

Flow Rate @ 50 psi 80 gpm

Flow Rate @ 60 psi 110 gpm

Flow Rate @ 70 psi 60 gpm

Flow Rate @ 80 psi 98 gpm

Flow Rate @ 90 psi 60 gpm

Fluid Connection Size 3 in

Fluid Connection Type NPT

Fluid Discharge Connection 3 in NPT

Fluid Intake Connection 3 in NPT

Height 32 in

Housing Material 316 Stainless Steel

Housing Material - Pumps Stainless Steel

Inlet/Outlet Size 3 in

Item - Air Operated Pumps Double Diaphragm Pump

Length 15 in

Manifold Connection Single Port

Manufacturers Warranty Length 1 yr

Max. Dia. Solids 3/8 in

Max. Flow 234 gpm

Max. Flow GPM 230 gpm

Max. Operating Pressure 125 psi

Max. Temp - Pumps 300 Degrees F

Max. Temp. 212 Degrees F

Media Discharge Connection Size 3 in

Media Discharge Connection Type NPT

Media Discharge Location Center, Top

Media Discharge Size 3 in

Media Discharge Type NPT

Media Intake Connection Size 3 in

Media Intake Connection Type NPT

Media Intake Location Bottom, Center

Media Intake Size 3 in

Media Intake Type NPT

Media Temperature (Maximum) 300 Degrees F

Operating Pressure (Maximum) 125 psi

Operation Type Air Operated

Overall Height 32.1 in

Overall Length 15 in

Overall Size 15 in x 25.1 in x 32.1 in

Overall Width 25.1 in

Package Quantity 1

Port Location Bottom Top, Center Center, Center Top

Pump Assembly Type Clamp

Pump Operation Type Air

Self-Priming Dry 20 ft

Self-Priming Wet 25 ft

Series Family E3

Solid Diameter (Maximum) 0.38 in

Standards ATEX

Valve Material Santoprene

Valve Type Ball

Wetted Housing Material 316 Stainless Steel

Width 20 in
