Pool and Spa Pump Motor, Permanent Split Capacitor, 2, 1/4 HP, 56C Fra

Home / Pool and Spa Pump Motor, Permanent Split Capacitor, 2, 1/4 HP, 56C Frame, 3,450/1,725 Nameplate RPM

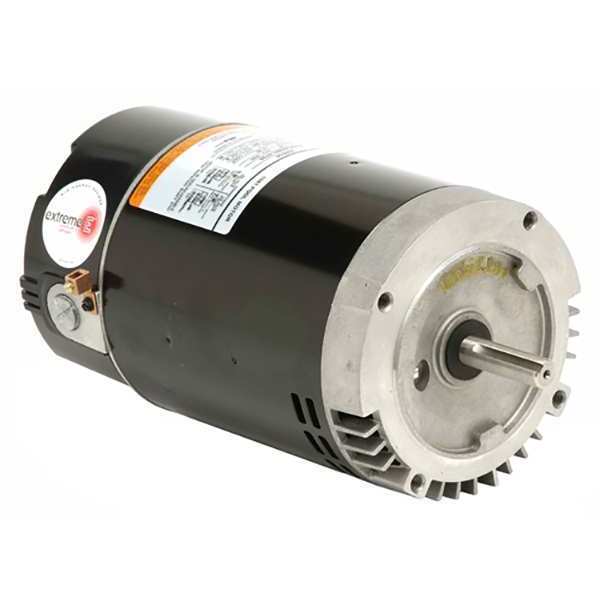

Pool and Spa Pump Motor, Permanent Split Capacitor, 2, 1/4 HP, 56C Frame, 3,450/1,725 Nameplate RPM

SKU
Brand U.S. Motors
Categories Pumps
Description Pool and Spa Pump Motor, Conduit Box Location Exterior, Finish Unfinished, Frame 56C, Hz 60, Full Load Amps 10.8/3.6, HP 1/4 hp, 2 hp, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof

Web Price

$751.24 / each

Qty

Product Details

Ambient Temperature 50 Degrees C

Conduit Box Location Exterior

Country of Origin (subject to change) Mexico

Finish Unfinished

Frame 56C

Full Load Amps 10.8/3.6

HP_ 1/4 hp, 2 hp

Hz_ 60

Ins. Class B

Max. Ambient Temp. 50 Degrees C

Motor Application Pump

Motor Bearings Ball

Motor Design Permanent Split Capacitor

Motor Enclosure Design Open Dripproof

Motor Flange Material Aluminum

Motor Mounting Type Face

Motor Service Factor 1

Motor Shaft Design Keyed

Motor Shaft Rotation CWLE

Motor Sub Application Pool and Spa Pump

Motor Thermal Protection Auto

Nameplate RPM 3,450/1,725

No. of Speeds 2

Package Quantity 1

Phase Single

RPM Range 3,001-3,600

Shaft Keyed

Shaft Dia. 5/8 in

Shaft Length 2 1/8 in

Standards CSA (156060), UL (E22922)

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 33 lb
