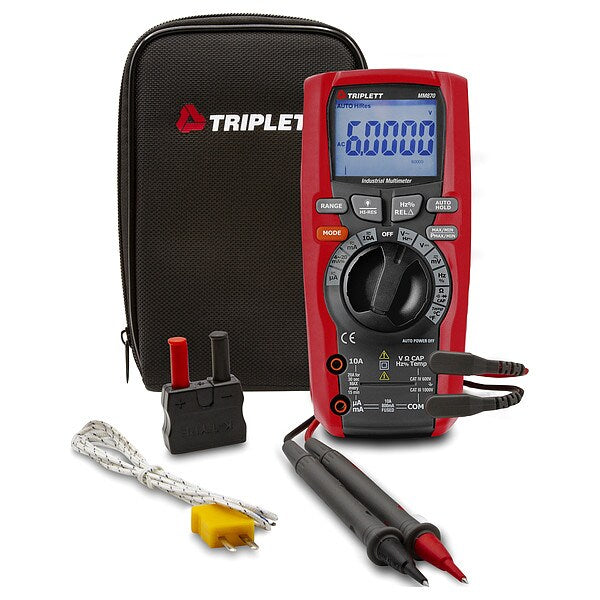

RMS Multimeter, CAT IV 600V, 1,000 V AC

SKU
Brand Triplett
Categories
Description RMS Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-0.05 Percent, Basic DC Voltage Accuracy +/-0.05 Percent, Data Hold Yes, Basic DC Current Accuracy +/-0.05 Percent, Instrument Safety Rating CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 6,000/60,000
graingerSKU: , mscSKU: , zoro_no: G109769195, mongo_id: 65bbe8e822d7a989a9922d9a

Web Price

$523.74 / each

Qty

Product Details

AC Response Calculation TRMS

Audible Continuity Yes

Auto Power Off Yes

Auto Ranging Yes

Bar Graph Included Yes

Basic AC Current Accuracy +/-0.05%

Basic AC Voltage Accuracy +/-0.05%

Basic DC Current Accuracy +/-0.05%

Basic DC Voltage Accuracy +/-0.05%

Batteries Included Yes

Battery Access Yes

Battery Size AAA

Bluetooth Compatible No

Calibration Certificate Included No

Capacitance Measurement Accuracy +/-(2.5% + 10)

Country of Origin (subject to change) China

Current Leakage Testing No

Data Hold Yes

Depth 1.9 in

Display Type Backlit LCD

Dustproof Yes

Duty Cycle 0.1 to 99.9%

Frequency Measurement Accuracy +/-(0.5% + 2)

Includes (4) AAA Batteries, Test Leads, Type K Temperature Probe

Instrument Counts 6,000/60,000

Instrument Safety Rating CAT IV 600V

Intrinsically Safe No

IP Rating IP67

Manufacturers Warranty Length 3 yr

Maximum AC Current Measurement 10 A

Maximum AC Voltage Measurement 1,000 V

Maximum Capacitance Measurement 6 mF

Maximum DC Current Measurement 10 A

Maximum DC Voltage Measurement 1,000 V

Maximum Frequency Measurement 20 MHz

Maximum Resistance Measurement 60 megaohm

Min-Max-Avg Button Included Yes

Minimum Operating Temperature -58 Degrees F

Overall Height 6.7 in

Overall Width 3 in

Package Quantity 1

Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage

Peak Hold Yes

Removable Screen No

Resistance Measurement Accuracy +/-(0.2% + 3)

Special Features Data Hold Freezes Measurement on the Display and Auto Hold Updates it when a New Stable Reading is Detected, Drop Proof 6.5 ft (2m), Low Battery Indicator, LPF (Low Pass Filter), Relative Mode Displays Measurements Relative to a Stored Reference Value, True RMS Provides Better Accuracy

Standards CE

Temperature Measurement Accuracy +/-(1.2% + 5 Degrees F/3 Degrees C)

Thermal Imaging No

Waterproof Yes

Weight 13.6 oz
