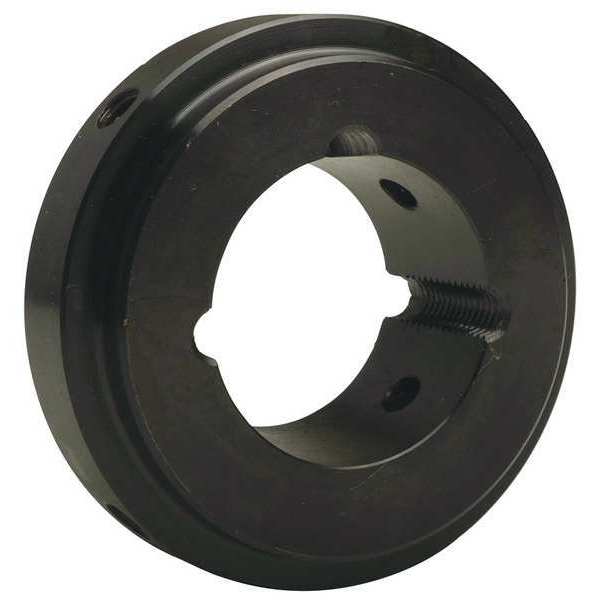

Home / Dura-Flex Taper Lock Coupling Hub, WE30, Max 2-1/8"
Dura-Flex Taper Lock Coupling Hub, WE30, Max 2-1/8
Dura-Flex Taper Lock Coupling Hub, WE30, Max 2-1/8
Dura-Flex Taper Lock Coupling Hub, WE30, Max 2-1/8

Dura-Flex Taper Lock Coupling Hub, WE30, Max 2-1/8"

  • Tb Woods
  • Adhesives, Epoxy & Sealants
  • Taper Lock Tire Coupling Hub, Angular Misalignment 3 Degrees , Coupling Size WE30, Horsepower @ 100 RPM 5.8 hp, Maximum Speed 5,800 RPM, Bore Type Taper Lock Bushing, For Bushing Size TL2012, Maximum Torque 3,650 in-lb, Keyway Depth Not Applicable, Keyway Width Not Applicable, Hub Diameter 5.42 in, Parallel Misalignment 0.09375 in, Bore Diameter Not Applicable, Screw Thread Size Not Applicable, Set Screw Location Not Applicable, System of Measurement Inch, Torsional Stiffness 42,200 in-lb/rad

    graingerSKU: , mscSKU: 53911574, zoro_no: G5631586, mongo_id: 65bbe7b43aaddbd5a90af038

Web Price
$228.74 / each
Qty

Product Details

3 Degrees
Blowers, Compressors, Fans, Generators, Including Pumps, Motors, Numerous Industrial Applications
WE30
Max 2-1/8
Not Applicable
Not Applicable
Taper Lock Bushing
Bushed Bore
2012
Mexico
5.07 in
WE30
Absorbs Shock, Easy to Install, No Lubrication Required, Same Hubs Used on Both Spacer and Standard Elements
TL2012
Angular, Parallel
5.42 in
5.8 hp
101 hp @1750 RPM, 203 hp @ 3500 RPM, 67 hp @ 1160 RPM
5.42
5.42 in
Steel
TL2012, Numerous Industrial Applications, Including Pumps, Motors, Compressors
Taper Lock Tire Coupling Hub
None
Not Applicable
Not Applicable
1 1/4 in
1.25
Low Carbon Steel
3 Degrees
5,800 RPM
200 Degrees F
5,800 RPM
3,650 in-lb
-40 Degrees F
5.42 in
5.42
1
0.09375 in
3,650
Chemical Resistant
Not Applicable
Not Applicable
One Over Keyway
WE30
Inch
42,200 in-lb/rad
21 lb
1.25 in
