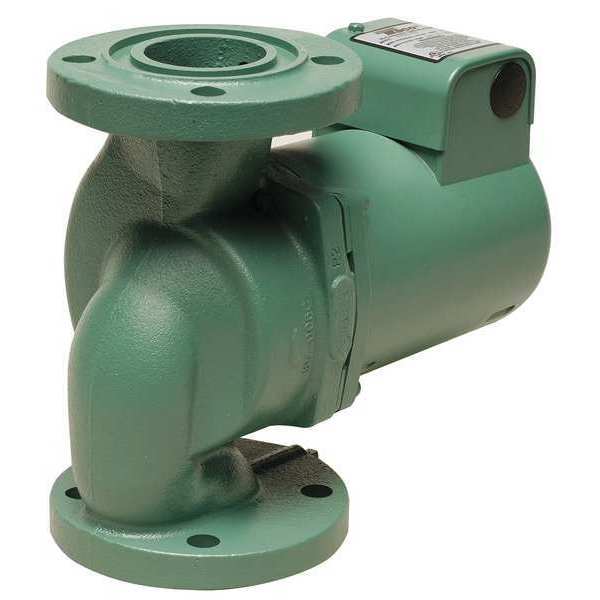

HVAC Circulating Pump, 1/2 hp, 115, 1 Phase, Flange Connection

HVAC Circulating Pump, 1/2 hp, 115, 1 Phase, Flange Connection

  • Taco
  • HVAC & Refrigeration, Pumps
  • Hydronic Circulating Pump, Compatible Intake Pipe Size 2 in, Connection Type Flange, Face to Face Dimension 8 1/2 in, Flange or Union Included No, For Use With Potable Systems Yes, Horsepower 1/2, Maximum Feet of Head 23 ft, Maximum Flow Rate @ 15 Feet of Head 76 gpm, Nameplate Voltage 115/230V AC, Number of Speeds 1, Phase Single, Pump Type Standard, Series Family 2400, Maximum Flow Rate @ 20 Feet of Head 46 gpm, Series 2400-70, Amps 2.4/4.9, Body Gasket Material EPDM

    graingerSKU: 5CHK9, mscSKU: , zoro_no: G3083367, mongo_id: 65bbe5d93aaddbd5a9fee4da

Web Price
$1,493.74 / each
Qty

Product Details

2.4/4.9
70 gpm @ 18 ft
EPDM
2 in
2 in
UL
Flange
Flange
United States
Direct
8 1/2 in
Compact, High Performance, Mechanical Seal, Permanently Lubricated Ball Bearings
No
No
Potable Systems
Yes
60 Hz
1/2
Cast iron
Cast Iron
1/2 hp
Hydronic Circulating Pump
Plastic
Flange Gaskets
2 in
9 7/8 in
Closed
3 yr
3 yr
90 gpm @ 11 ft
150 psi
225 Degrees F
23 ft
76 gpm
76 gpm
46 gpm
225 Degrees F
150 psi
3,450 RPM
Carbon/Silicon Carbide
10 gpm @ 22 ft
40 Degrees F
115/230V AC
1
9.88 in
5.5 in
1
Single
1
TACO Single Phase
Cast Iron
In Line
Standard
Dry
3,450 RPM
2400-70
2400
Stainless Steel
22 ft
NSF, UL-CUS
yes
115/240V AC
115V AC
5 1/2 in
