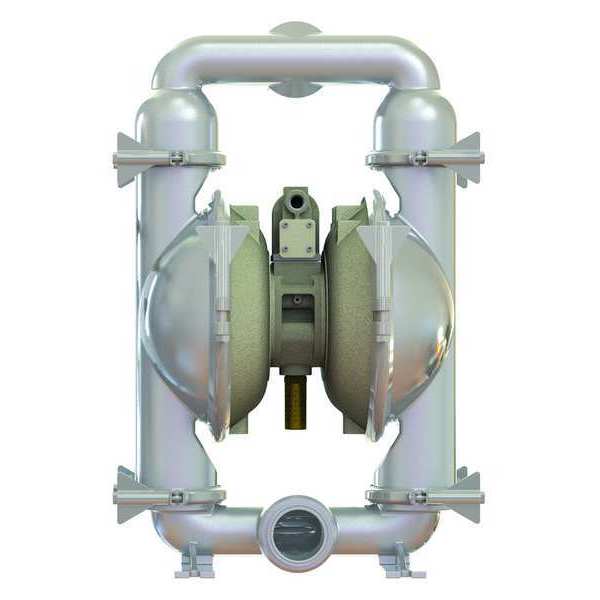

Double Diaphragm Pump, 316 Stainless Steel, Air Operated, PTFE

Home / Double Diaphragm Pump, 316 Stainless Steel, Air Operated, PTFE

Double Diaphragm Pump, 316 Stainless Steel, Air Operated, PTFE

SKU
Brand Standard Pump
Categories Pumps
Description Double Diaphragm Pump, Air Consumption (Maximum) 180 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type FNPT, Check Seat Material 316 Stainless Steel, Diaphragm Material PTFE, Flow Rate (Maximum) 180 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3 in, Media Discharge Connection Type Tri-Clamp, Media Discharge Location Center, Media Intake Connection Size 3 in, Media Intake Connection Type Tri-Clamp, Media Intake Location Center
graingerSKU: 39N544, mscSKU: , zoro_no: G9818584, mongo_id: 65bbe76f9a749db822739af1

Web Price

$16,449.99 / each

Qty

Product Details

Agency Compliance ATEX Certified, FDA Compliant

Air Consumption (Maximum) 180 scfm

Air Inlet 1/2 in FNPT

Air Inlet Size 1/2 in FNPT

Air Intake Connection Size 1/2 in

Air Intake Connection Type FNPT

Ball Material PTFE

Body Material 316 Stainless Steel

Check Seat Material 316 Stainless Steel

Connection Style Tri-Clamp

Country of Origin (subject to change) United States

Diaphragm Material PTFE

Diaphragm Material - Pumps PTFE

Discharge Port 3 in Tri-Clamp

Flow Rate (Maximum) 180 gpm

Flow Rate @ 10 psi Not Applicable

Flow Rate @ 100 psi 178 gpm

Flow Rate @ 120 psi 180 gpm

Flow Rate @ 15 psi Not Applicable

Flow Rate @ 20 psi 130 gpm

Flow Rate @ 30 psi Not Applicable

Flow Rate @ 40 psi 147 gpm

Flow Rate @ 50 psi Not Applicable

Flow Rate @ 60 psi 165 gpm

Flow Rate @ 70 psi Not Applicable

Flow Rate @ 80 psi 170 gpm

Flow Rate @ 90 psi Not Applicable

Fluid Connection Size 3 in

Fluid Connection Type Tri-Clamp

For Use With Potable Systems Yes

Height 32 in

Housing Material - Pumps 316 Stainless Steel

Includes Muffler

Inlet/Outlet Size 3 in

Item - Air Operated Pumps Double Diaphragm Pump

Length 21 1/2 in

Manifold Connection Single Port

Manifold Connection Type Tri-Clamp

Manufacturers Warranty Length 3 yr

Max. Dia. Solids 3/8 in

Max. Flow 180 gpm

Max. Flow GPM 180 gpm

Max. Operating Pressure 120 psi

Max. Temp - Pumps 220 Degrees F

Max. Temp. 220 Degrees F

Media Discharge Connection Size 3 in

Media Discharge Connection Type Tri-Clamp

Media Discharge Location Center

Media Intake Connection Size 3 in

Media Intake Connection Type Tri-Clamp

Media Intake Location Center

Media Temperature (Maximum) 220 Degrees F

Media Temperature (Minimum) -35 Degrees F

Nameplate Voltage Not Applicable

Non-Wetted Housing Material Aluminum

Operating Pressure (Maximum) 120 psi

Operation Type Air Operated

Overall Height 32 in

Overall Length 21.5 in

Overall Width 17 in

Package Quantity 1

Priming Self-Priming

Pump Assembly Type Clamp

Pump Operation Type Air

Self-Priming Dry 12 ft

Self-Priming Wet 32 ft

Solid Diameter (Maximum) 0.38 in

Standards CE Certified

Suction Port 3 in Tri-Clamp

Valve Material PTFE

Valve Type Oil-Less Air Valve

Viscosity (Maximum) 30,000 cps

Wetted Housing Material 316 Stainless Steel

Width 17 in
