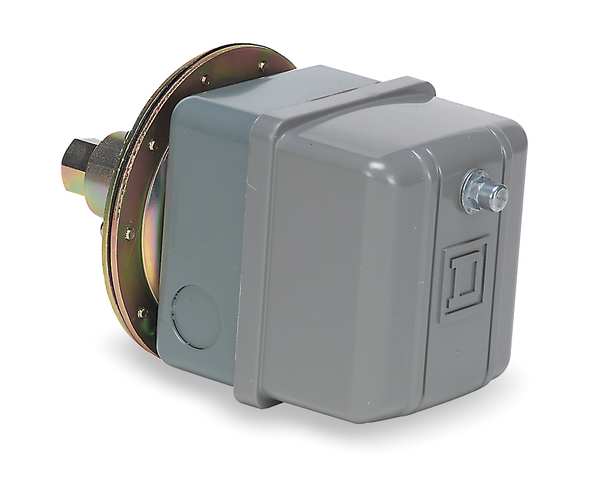

Pumptrol Vacuum Swtch, Stndard, 0 to 25"Hg, Diaphrgm

Home / Pumptrol Vacuum Swtch, Stndard, 0 to 25"Hg, Diaphrgm

Pumptrol Vacuum Swtch, Stndard, 0 to 25"Hg, Diaphrgm

SKU
Brand Square D
Categories Pumps
Description Vacuum Switch, Range 0 to 25 in Hg, Contact Form DPST, Port Type 1-Port 1/4-18 in FNPS, NEMA Rating 1, Action Standard, Differential 5 to 10 in Hg, 9013GVG Series, Ambient Temp. Range -10 Degrees to 185 Degrees F, Media Temp. Range -14 Degrees to 250 Degrees F
graingerSKU: 2FP36, mscSKU: 69669984, zoro_no: G0280926, mongo_id: 65bbe6373aaddbd5a9014ad3

Web Price

$234.99 / each

Qty

Product Details

Action Standard

Ambient Air Temperature For Operation 10-185ÃÂ°F

Ambient Air Temperature For Storage 10-185ÃÂ°F

Ambient Temp. Range -10 Degrees to 185 Degrees F

Approx Adjustable Differential At Mid Range 5-10 inHg

Cable Entry Number 3 knock-outs for 1/2 NPT conduit

Contact Form DPST

Contacts Type And Composition 2 NC, DPST-DB, Form YY, snap action, silver cadmium contacts

Controlled Fluid air -40-250ÃÂ°F) || water -40-250ÃÂ°F) || hydraulic oil -40-250ÃÂ°F) || gas -40-250ÃÂ°F)

Country of Origin (subject to change) Mexico

Cover Material polypropylene, noryl thermoplastic resin or equivalent

Cut Out Range 5-25 inHg

Cut-In Range 0-20 inHg

Depth 4.37 in

Device Application power circuit application

Device Short Name 9016GVG

Differential 5 to 10 in Hg

Electrical Circuit Type power circuit

Electrical Connection screw-clamp terminals AWG 22...AWG 12

Enclosure Material stamped metal

Fluid Connection Type 0.25 inch 18 NPSF UL 508

Height 7.13 in

Local Display without

Materials In Contact With Fluid nitrile (Buna-N) || zinc plated steel || 3M Scotch-Grip 847 rubber and gasket adhesive

Maximum Operating Rate 100 cyc/mn

Maximum Pressure 100 psi

Mechanical Durability 300 cycles

Media Temp. Range -14 Degrees to 250 Degrees F

Motor Power Kw 1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.75 kW 5 hp)230 V AC, 3 phase || 3.7 kW 5 hp)460 V AC, 1 phase || 3.7 kW 5 hp)460 V AC, 3 phase || 3.7 kW 5 hp)575 V AC, 1 phase || 3.7 kW 5 hp)575 V AC, 3 phase || 0.75 kW 1 hp)115 V DC, 3 phase || 0.75 kW 1 hp)230 V DC

Nema Degree Of Protection NEMA 1 UL 698

NEMA Rating 1

Operating Position any position

Package Quantity 1

Port Type 1-Port 1/4-18 in FNPS

Pressure Actuator diaphragm nitrile (Buna-N)

Product Certifications CSA file LR25490 || UL listed file E12158 CCN NKPZ

Product Or Component Type electromechanical vacuum switch

Range 0 to 25 in Hg

Repeat Accuracy 0.025

Scale Type adjustable

Series 9013GVG
