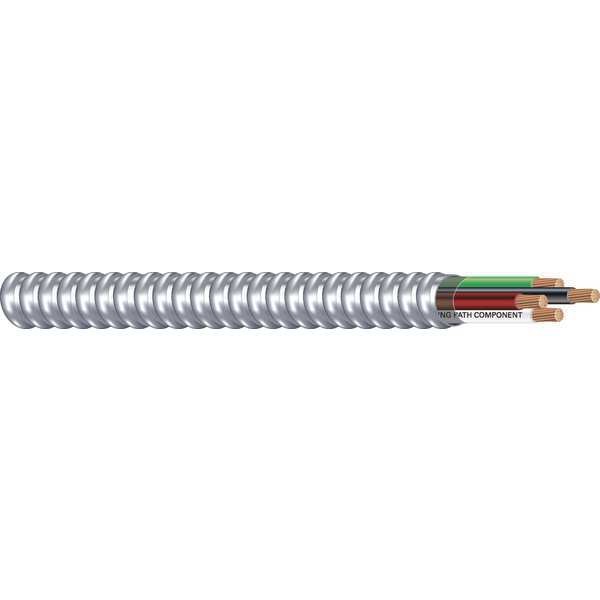

12 AWG 3 Conductor Stranded Metal Clad 600V 250 ft. SLVR

SKU
Brand Southwire
Categories
Description Metal Clad Armored Cable, Trade Designation MC, Wire Size 12 AWG, Number of Conductors 3 with Insulated CU Ground, Wire Color Black/Green/Red/White, Jacket Color Silver, Length 250 ft, Conductor Design Stranded, Jacket Material Aluminum, Insulation Material Nylon, PVC, Nominal Outside Dia. 0.527 in, Packaging Coil, Voltage 600 V, Temp. Rating -14 Degrees to 90 Degrees C Dry
graingerSKU: , mscSKU: , zoro_no: G8101371, mongo_id: 65bbe63d3aaddbd5a901865f

Web Price

$568.74 / each

Qty

Product Details

Application Indoor

Applications ApplicationSouthwire ArmorliteÃÂ® Type MC Cable is suitable for use as follows:Branch, feeder and service power distribution in commercial, industrial, institutional, and multiresidential buildings.Fished or embedded in plaster.Concealed or exposed installationsEnvironmental air-handling spaces per NEC 300.22 (C).Places of Assembly per NEC 518.4 and theaters per NEC 520.5.Installation in cable tray and approved raceways.Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) & 645.5(D)(2).Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations.

Cable Type (Wire and Cable) MC

Cable Type - Wire and Cable MC

Conductor Design Stranded

Construction ConstructionSouthwire ArmorliteÃÂ® Type MC Cable is constructed with soft-drawn copper, Type THHN/THWN conductors rated 90ÃÂ°C dry available in sizes 14 AWG through 2 AWG, and a green insulated grounding conductor. The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly.

Country of Origin (subject to change) Multiple

Insulation Material Nylon, PVC

Insulation Thickness (Mils) 15mils

Jacket Color Silver

Jacket Material Aluminum

Jacket Material (Wire and Cable) Aluminum

Jacket Material - Wire and Cable Aluminum

Length 250 ft

Length (Straight Wireway) 250 ft

Max. Amps 20

No. of Conductors 3

No. of Strands 19

Nom. Od (Mils) 542mils

Nominal Outside Dia. 0.527 in

Number of Conductors 3 with Ground

Package Quantity 1

Packaging Coil

Size (Awg or Kcmil) 12 AWG

Size (Awg) 12

Spool Length 250 ft.

Standards UL 83, 1569, 1685, NEC Article 330, Federal Specification A-A59544 (Formerly J-C-30B), FT4/IEEE 1202, Vertical Cable Tray Flame Test, Listed for Use In UL 1, 2 and 3 Hour Through Penetration Firestop Systems

Stranded / Solid Stranded

Temp. Rating -14 Degrees to 90 Degrees C Dry

Trade Designation MC

Voltage 600 V

Wire and Cable Item Metal Clad Armored Cable

Wire Color Black/Green/Red/White

Wire Size 12 AWG

Wire Size (Wire and Cable) 12 AWG

Wire Size - Wire and Cable 12 AWG
