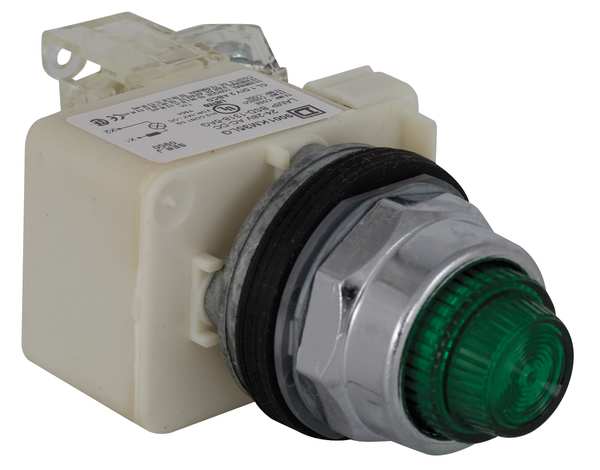

Push to Test Pilot Light, Green, LED

Home / Push to Test Pilot Light, Green, LED

Push to Test Pilot Light, Green, LED

SKU
Brand Schneider Electric
Categories Lighting Tools
Description Push to Test Pilot Light Complete, Voltage 120V AC, Color Green, Lamp Type LED, Shape Round, Terminal Connection Pressure Plate, Lens Material Plastic, 30 mm, Lamp Module Type Full Voltage, Basic Material Metal, Lens Type Fresnel, Lamp Voltage 120V AC, Replacement Lamps N/A, Body Material Chrome Plated Zinc Die Cast, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating 66, Includes Light Module and LED Lamp, Standards CE, CSA, UL
graingerSKU: 5KAT5, mscSKU: , zoro_no: G1659296, mongo_id: 65bbe7753aaddbd5a90967b0

Web Price

$188.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -13 to 158ÃÂ°F (-25 to 70ÃÂ°C)

Ambient Air Temperature For Storage -40 to 158ÃÂ°F (-40 to 70ÃÂ°C)

Basic Material Metal

Bezel Metal

Body Material Chrome Plated Zinc Die Cast

Bulb Base BA 9s

Color Green

Connections - Terminals Screw clamp terminals 1 x 0.22 to 2 x 1.5 mmÃÂ² IEC 60947-1

Contact Form 1 C/O

Contact Operation Standard

Contacts Material Silver alloy contacts

Conventional Free Air Thermal Current 10 A

Country of Origin (subject to change) Mexico

Device Presentation Complete product

Electrical Shock Protection Class Class II IEC 61140

Includes Light Module and LED Lamp

IP Degree Of Protection IP66 IEC 60529

IP Rating 66

Lamp Module Type Full Voltage

Lamp Type Led

Lamp Voltage 120V AC

Lens Material Plastic

Lens Type Fresnel

Light Block Supply Direct

Mechanical Durability 5000000 cycles

Mounting Diameter 1.18 in (30 mm)

NEMA Degree Of Protection NEMA 1; NEMA 12; NEMA 13; NEMA 2; NEMA 3; NEMA 3R; NEMA 4

NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6

Operating Position Any position

Operator Profile Green projecting, unmarked

Package Quantity 1

Positive Opening Without

Product Certifications NEMA; UL 508

Product Or Component Type Push-to-test pilot light

Protective Treatment TC

Rated Breaking Capacity 1.2 kA 600 V AC-15, 720 VA; 1.5 kA 480 V AC-15, 720 VA; 3 kA 240 V AC-15, 720 VA; 6 kA 120 V AC-15, 720 VA; 0.27 kA 600 V DC-13; 0.55 kA 250 V DC-13; 0.1 kA 125 V DC-13

Rated Impulse Withstand Voltage 2.5 kV IEC 60947-1

Rated Insulation Voltage 250 V 3)IEC 60947-1

Rated Operational Current 0.55 A 125 V, DC-13, A600-Q600 NEMA

Rated Short Circuit Making Capacity 12 kA 600 V AC-15, 7200 VA; 15 kA 480 V AC-15, 7200 VA; 30 kA 240 V AC-15, 7200 VA; 60 kA 120 V AC-15, 7200 VA; 0.55 kA 125 V DC-13

Rated Supply Voltage 120 V AC/DC

Replacement Lamps N/A

Shape Round

Shape Of Screw Head Cross slotted

Shape Of Signaling Unit Head Octagonal

Shock Resistance 50 gn IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse IEC 60947-5-1

Size 30 mm

Standards CE, CSA, UL

Terminal Connection Pressure Plate

Tightening Torque 7.08 lbf.in (0.8 N.m) IEC 60947-1

Type of Operator Spring Return
