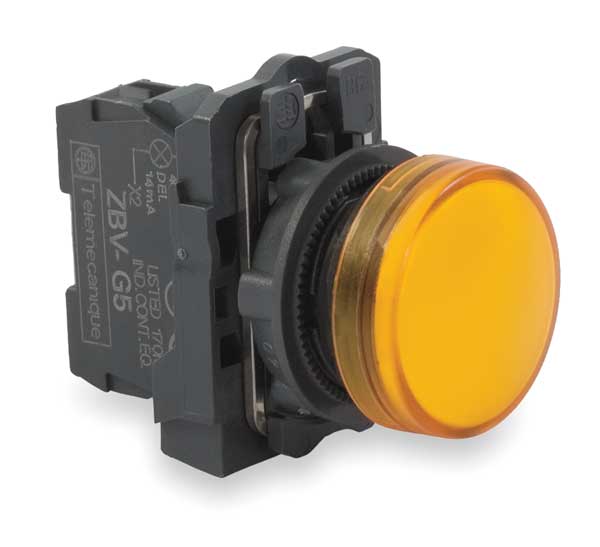

Pilot Light, LED, Orange, 22mm, 110-120VAC

Pilot Light, LED, Orange, 22mm, 110-120VAC

  • Schneider Electric
  • Lighting Tools
  • Pilot Light Complete, Voltage 110 to 120V AC, Color Yellow, Lamp Type LED, Shape Round, Terminal Connection Screw Clamp, 22 mm, Lamp Module Type Full Voltage, Basic Material Plastic, Body Material Plastic, NEMA Rating 13, 4, 4X, IP Rating 66, Includes Light Module and Head, Mounting Base, Standards UL E164353 CCN NKCR - CSA LR44087 Class 321103 - CE Marked

    graingerSKU: 2UZC6, mscSKU: , zoro_no: G2493041, mongo_id: 65bbe7bf9a749db8227539bf

Web Price
$66.69 / each
Qty

Product Details

-40 to 158°F (-40 to 70°C)
-40 to 158°F (-40 to 70°C)
100000 hr
Plastic
Dark Grey Plastic
Dark Gray plastic
plastic
Integral LED
Orange
Yellow
XB5
Screw clamp terminals, Less than or Equal to 2 x 1.5 mm² with cable end IEC 60947-1; Screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end IEC 60947-1
(X1-X2)PL
France
14 mA
2.13 in (54 mm)
Complete product
Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2; Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2; Electromagnetic emission class B conforming to IEC 55011
Class B IEC 55011
Standard
42 mm
IK05 IEC 50102
Light Module and Head, Mounting Base
IP66 IEC 60529; IP67 IEC 60529; IP69 IEC 60529; IP69K ISO 20653
66
Full Voltage
Led
54 mm
Universal LED
Orange
0.87 in (22 mm)
NEMA 13; NEMA 4X
13, 4, 4X
Class II IEC 60536
1
CSA; UL Listed
Pilot light
TH
4 kV IEC 60947-1
250 V 3)IEC 60947-1
110 to 120 V AC 50/60 Hz
9.14 V/m (10 V/m) IEC 61000-4-3
6 kV on contact (on metal parts) IEC 61000-4-2; 8 kV in free air (in insulating parts) IEC 61000-4-2
2 kV IEC 61000-4-4
1015.26 psi (7000000 Pa) 131°F (55°C) 0.1 m
100000 h at rated voltage and 25°C
Round
50 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Steady
22 mm
UL E164353 CCN NKCR - CSA LR44087 Class 321103 - CE Marked
100 to 132 V AC
1 kV IEC 61000-4-5
Screw Clamp
Steady Signal
5 gn 12 to 500 Hz)IEC 60068-2-6
110 to 120V AC
30 mm
