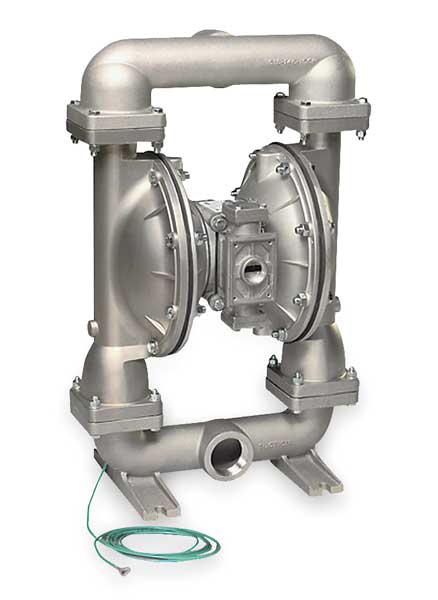

Double Diaphragm Pump, Stainless steel, Natural Gas Operated, 150 GPM

Home / Double Diaphragm Pump, Stainless steel, Natural Gas Operated, 150 GPM

Double Diaphragm Pump, Stainless steel, Natural Gas Operated, 150 GPM

SKU
Brand Sandpiper
Categories Pumps
Description Double Diaphragm Pump, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT, Check Seat Material PTFE, Diaphragm Material PTFE, Feet of Head (Maximum) 231 ft, Flow Rate (Maximum) 150 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type NPT, Media Discharge Location Center, Top, Media Intake Connection Size 2 in, Media Intake Connection Type NPT, Media Intake Location Bottom, Center, Media Temperature (Maximum) 220 Degrees F
graingerSKU: 6WY71, mscSKU: , zoro_no: G1458213, mongo_id: 65bbe84022d7a989a98e555a

Web Price

$7,796.24 / each

Qty

Product Details

Agency Compliance ATEX,ABS, CE, EAC

Air Inlet Size 3/4 in FNPT

Air Intake Connection Size 3/4 in

Air Intake Connection Type NPT

Air Intake Pressure (Maximum) 100 psi

Ball Material PTFE

Body Material Stainless steel

Check Seat Material PTFE

Connection Style NPT

Country of Origin (subject to change) United States

Diaphragm Material PTFE

Diaphragm Material - Pumps PTFE - Buna Backup

Discharge Port 2 in NPT

Feet of Head (Maximum) 231 ft

Flow Rate (Maximum) 150 gpm

Flow Rate @ 10 psi 60 gpm

Flow Rate @ 100 psi Not Applicable

Flow Rate @ 15 psi 30 gpm

Flow Rate @ 20 psi 80 gpm

Flow Rate @ 30 psi 43 gpm

Flow Rate @ 40 psi 70 gpm

Flow Rate @ 50 psi 40 gpm

Flow Rate @ 60 psi 60 gpm

Flow Rate @ 70 psi 35 gpm

Flow Rate @ 80 psi 58 gpm

Flow Rate @ 90 psi 35 gpm

Fluid Connection Size 2 in

Fluid Connection Type NPT

Height 26 5/16 in

Housing Material - Pumps Stainless Steel

Inlet/Outlet Size 2 in

Item - Air Operated Pumps Double Diaphragm Pump

Length 12 19/32 in

Manifold Connection Single Port

Manufacturers Warranty Length 5 yr

Max. Dia. Solids 1/4 in

Max. Flow 150 gpm

Max. Flow GPM 150 gpm

Max. Operating Pressure 100 psi

Max. Temp - Pumps 220 Degrees F

Max. Temp. 220 Degrees F

Media Discharge Connection Size 2 in

Media Discharge Connection Type NPT

Media Discharge Location Center, Top

Media Intake Connection Size 2 in

Media Intake Connection Type NPT

Media Intake Location Bottom, Center

Media Temperature (Maximum) 220 Degrees F

Media Temperature (Minimum) -35 Degrees F

NPSHr 5 ft of head

Operating Pressure (Maximum) 100 psi

Operation Type Natural Gas Operated

Overall Height 26.4 in

Overall Length 11.6 in

Overall Width 17 in

Package Quantity 1

Pump Assembly Type Bolt

Pump Operation Type Gas

Self-Priming Dry 20 ft

Self-Priming Wet 25 ft

Series G20

Series Family G20

Solid Diameter (Maximum) 0.25 in

Standards ABS Type Approved, ANSI LC6, ATEX Certified, CSA Certified, NACE MR0175/ISO15156

Suction Port 2 in NPT

Valve Material PTFE

Valve Type Ball

Wetted Housing Material 316 Stainless Steel

Width 16 7/8 in
