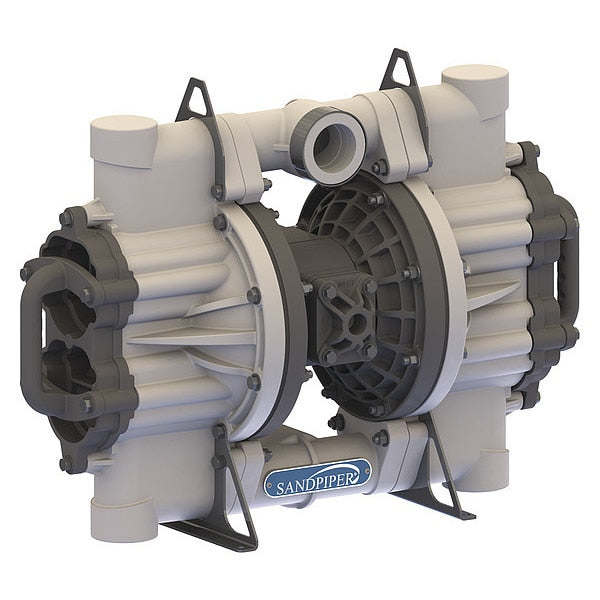

Double Diaphragm Pump, 150 gpm Max. Flow, Connection Style: FNPT

Home / Double Diaphragm Pump, 150 gpm Max. Flow, Connection Style: FNPT

Double Diaphragm Pump, 150 gpm Max. Flow, Connection Style: FNPT

SKU
Brand Sandpiper
Categories Pumps
Description Double Diaphragm Pump, Air Consumption (Maximum) 60 scfm, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT, Check Seat Material 316 Stainless Steel, Diaphragm Material Santoprene, Feet of Head (Maximum) 231 ft, Flow Rate (Maximum) 150 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type NPT, Media Discharge Location Bottom, Center, Media Intake Connection Size 2 in, Media Intake Connection Type NPT

Web Price

$6,187.49 / each

Qty

Product Details

Agency Compliance EN 809

Air Consumption (Maximum) 60 scfm

Air Inlet 3/4 in NPT

Air Inlet Size 3/4 in FNPT

Air Intake Connection Size 3/4 in

Air Intake Connection Type NPT

Air Intake Pressure (Maximum) 100 psi

Check Seat Material 316 Stainless Steel

Chemical Compatibility Calcium Carbonate, Water

Connection Style FNPT

Country of Origin (subject to change) United States

Diaphragm Material Santoprene

Diaphragm Material - Pumps Santoprene(R)

Feet of Head (Maximum) 231 ft

Flow Rate (Maximum) 150 gpm

Flow Rate @ 10 psi Not Applicable

Flow Rate @ 100 psi 150.4 gpm

Flow Rate @ 120 psi Not Applicable

Flow Rate @ 15 psi Not Applicable

Flow Rate @ 20 psi 74.4 gpm

Flow Rate @ 30 psi Not Applicable

Flow Rate @ 40 psi 75.1 gpm

Flow Rate @ 50 psi Not Applicable

Flow Rate @ 60 psi 126.3 gpm

Flow Rate @ 70 psi Not Applicable

Flow Rate @ 80 psi 139 gpm

Flow Rate @ 90 psi Not Applicable

Fluid Connection Size 2 in

Fluid Connection Type NPT

Fluid Discharge Connection 2 in NPT

Fluid Intake Connection 2 in NPT

For Use With Potable Systems No

Housing Material Polypropylene

Housing Material - Pumps Polypropylene

Inlet/Outlet Size 2 in

Item - Air Operated Pumps Double Diaphragm Pump

Manifold Connection Single Port

Manifold Connection Type NPT

Manufacturers Warranty Length 5 yr

Max. Dia. Solids 1 51/64 in

Max. Flow 150 gpm

Max. Flow GPM 150 gpm

Max. Operating Pressure 100 psi

Max. Temp - Pumps 180 Degrees F

Media Discharge Connection Size 2 in

Media Discharge Connection Type NPT

Media Discharge Location Bottom, Center

Media Discharge Size 2 in

Media Discharge Type NPT

Media Intake Connection Size 2 in

Media Intake Connection Type NPT

Media Intake Location Center, Top

Media Intake Size 2 in

Media Intake Type NPT

Media Temperature (Maximum) 275 Degrees F

Media Temperature (Minimum) -40 Degrees F

Non-Wetted Housing Material Polypropylene

NPSHr 5 ft of head

Operating Pressure (Maximum) 100 psi

Overall Height 20.9 in

Overall Length 12.7 in

Overall Size 12.7 in x 29.7 in x 20.9 in

Overall Width 29.7 in

Package Quantity 1

Port Location Center Center, Top Bottom, Top Center

Priming Self-Priming

Pump Assembly Type Bolt

Pump Operation Type Air

Series Family HD20

Solid Diameter (Maximum) 1.8 in

Standards ABS Type Approved, CE Certified, EAC, ISO

Valve Material EPDM

Valve Type Flap

Wetted Housing Material Polypropylene
