Home / Metric Greasable Precision Rod End

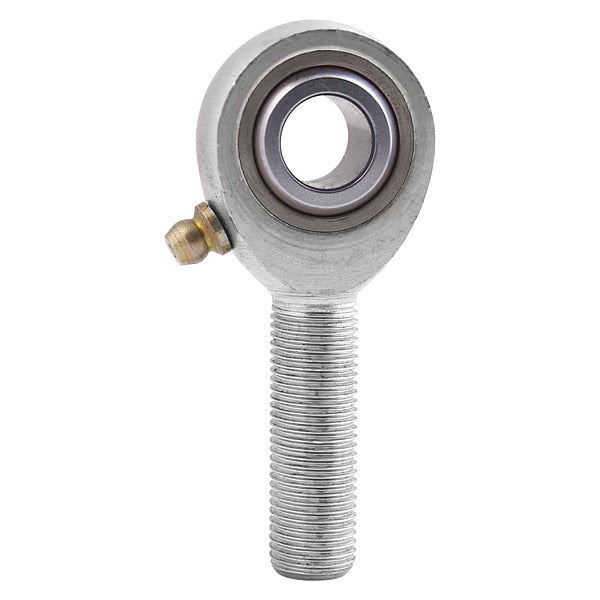

Metric Greasable Precision Rod End

Metric Greasable Precision Rod End

  • Qa1
  • Raw Materials
  • Rod End Bearing, System of Measurement Metric, Ball Stud Center Length 78 mm, Bore Diameter 20 mm, Head Outside Diameter 46 mm, Head Width 18 mm, Shank Thread Length 47 mm, Shank Thread Size M20-1.5, Housing Material Chromoly Steel, Shank Thread Direction Left Hand, Application Automotive, Ball Diameter 34.93 mm, Ball Material 52100 Steel Spherical, Ball Material Grade 52100, Bore Diameter Tolerance -0.012/+0.065 mm, Housing Material Finish Chrome, Inner Ring Width 25 mm, Load Direction Radial
Web Price
$124.86 / each
Qty

Product Details

Automotive
34.93 mm
52100 Steel Spherical
52100
78 mm
20 mm
-0.012/+0.065 mm
China
46 mm
18 mm
Chromoly Steel
25 mm
Radial
Grease Fitting
20 Degrees
1
Chromoly Steel
Corrosion Resistant, Wear Resistant
Spherical Rod End
Left Hand
Male
47 mm
M20-1.5
ISO 9001
120,212 N
Metric
