Home / Metric Greasable Precision Rod End

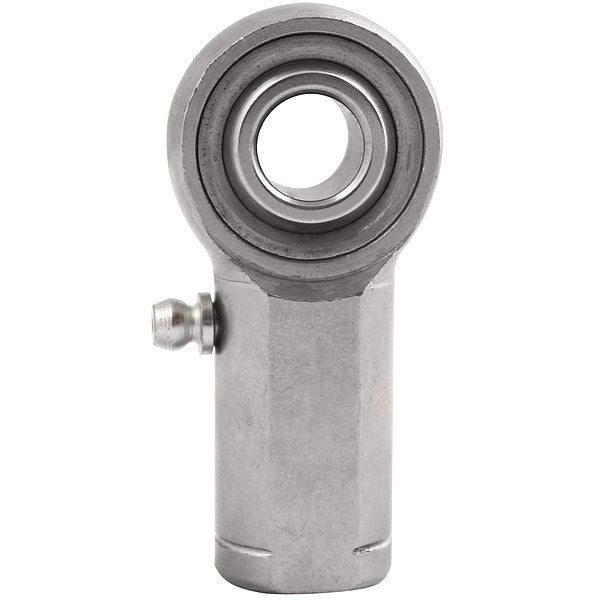

Metric Greasable Precision Rod End

Metric Greasable Precision Rod End

  • Qa1
  • Raw Materials
  • Rod End Bearing, System of Measurement Metric, Ball Stud Center Length 43 mm, Bore Diameter 10 mm, Head Outside Diameter 27 mm, Head Width 10.5 mm, Shank Thread Length 21 mm, Shank Thread Size M10-1.5, Housing Material Chromoly Steel, Shank Thread Direction Right Hand, Application Automotive, Ball Diameter 19.05 mm, Ball Material 52100 Steel Spherical, Ball Material Grade 52100, Bore Diameter Tolerance -0.012/+0.065 mm, Housing Material Finish Chrome, Inner Ring Width 14 mm
Web Price
$40.94 / each
Qty

Product Details

Automotive
19.05 mm
52100 Steel Spherical
52100
43 mm
10 mm
-0.012/+0.065 mm
China
27 mm
10.5 mm
Chromoly Steel
14 mm
Radial
Grease Fitting
17 Degrees
1
Chromoly Steel
Corrosion Resistant, Wear Resistant
Spherical Rod End
Right Hand
Female
21 mm
M10-1.5
ISO 9001
50,227 N
Metric
