Home / Male Stud Rod End, Nylon/PTFE, RH, 3/4-16

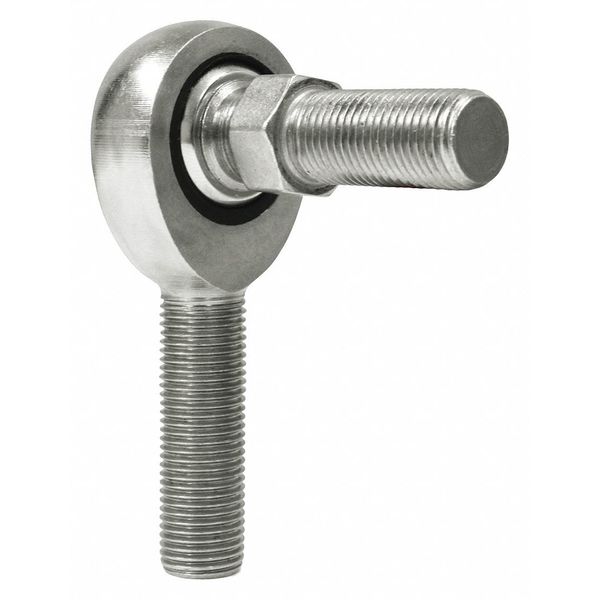

Male Stud Rod End, Nylon/PTFE, RH, 3/4-16
Male Stud Rod End, Nylon/PTFE, RH, 3/4-16

Male Stud Rod End, Nylon/PTFE, RH, 3/4-16

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Inch, Ball Stud Center Length 3 in, Ball Stud Thread Length 1 5/8 in, Ball Stud Thread Size 3/4 In.-16, Bore Diameter 3/4 in, Head Outside Diameter 1 3/4 in, Head Width 0.687 in, Shank Thread Length 1 3/4 in, Shank Thread Size 3/4 In.-16, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Low Load, Moderate Oscillation, Ball Diameter 1.312 in, Ball Material Alloy Steel, Ball Material Grade 52100, Ball Stud Material Carbon Steel

    graingerSKU: 20F957, mscSKU: , zoro_no: G4426457, mongo_id: 65bbe83b9a749db82277d4a4

Web Price
$27.49 / each
Qty

Product Details

Low Load, Moderate Oscillation
52100 Steel Spherical
1.312 in
Alloy Steel
52100
3 in
Carbon Steel
Right Hand
1 5/8 in
3/4-16
52100 Steel Spherical Ball
3/4 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
3/4-16
1.188 in
1.812 in
1.75 in
2.875 in
1.75 in
3.75 in
1 3/4 in
0.687 in
Carbon Steel
Carbon Steel
Chrome Plated
0.875 in
14 Degrees
14 Degrees
3 3/4 in
1
Nylon/PTFE
Corrosion Resistant, High Wear Resistant, Low Moisture Absorption
Spherical Rod End
Yes
Right Hand
Male
1 3/4 in
3/4-16
Male Studded
ISO Certified 9001
10,900 lb
10,900 lbf
1.812 in
Inch
Right Hand
3/4-16
Male Studded
