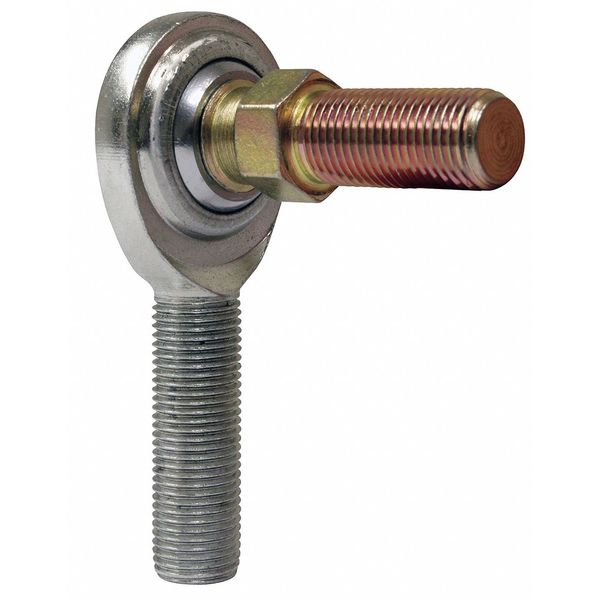

Male Stud Rod End, LH, 1/4-28
Male Stud Rod End, LH, 1/4-28

Male Stud Rod End, LH, 1/4-28

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Inch, Ball Stud Center Length 1 in, Ball Stud Thread Length 1/2 in, Ball Stud Thread Size 1/4 In.-28, Bore Diameter 1/4 in, Head Outside Diameter 3/4 in, Head Width 0.25 in, Shank Thread Length 1 in, Shank Thread Size 1/4 In.-28, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 0.5 in, Ball Material Alloy Steel, Ball Material Grade 52100, Ball Stud Material Carbon Steel

    graingerSKU: 20G011, mscSKU: , zoro_no: G8547865, mongo_id: 65bbe83b9a749db82277d4ad

Web Price
$7.69 / each
Qty

Product Details

Light Duty
52100 Steel Spherical
0.5 in
Alloy Steel
52100
1 in
Carbon Steel
Left Hand
1/2 in
1/4-28
52100 Steel Spherical Ball
1/4 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
1/4-28
0.469 in
0.562 in
0.75 in
1.562 in
1.0 in
1.937 in
3/4 in
0.25 in
Carbon Steel
Carbon Steel
Chrome Plated
0.375 in
27 Degrees
27 Degrees
1 7/8 in
1
Not Applicable
Corrosion Resistant
Spherical Rod End
Yes
Left Hand
Male
1 in
1/4-28
Male Studded
ISO Certified 9001
2,835 lb
2,835 lbf
0.562 in
Inch
Left Hand
1/4-28
Male Studded
