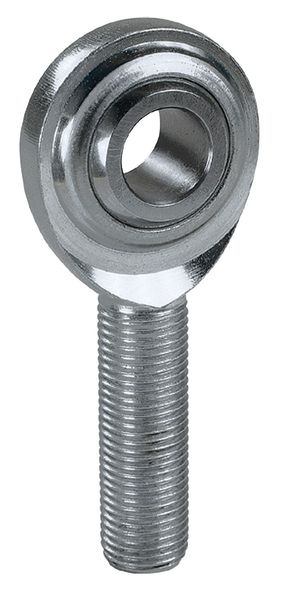

Male Rod End, SS, RH, 1/4-28
Male Rod End, SS, RH, 1/4-28

Male Rod End, SS, RH, 1/4-28

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Inch, Bore Diameter 1/4 in, Head Outside Diameter 3/4 in, Head Width 0.25 in, Shank Thread Length 1 in, Shank Thread Size 1/4 In.-28, Housing Material Stainless Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 0.5 in, Ball Material Stainless Steel, Ball Material Grade 440C, Bore Diameter Tolerance +0.0015/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.375 in, Maximum Ball Swivel 27 Degrees

    graingerSKU: 20G042, mscSKU: , zoro_no: G6088433, mongo_id: 65bbe83b9a749db82277d4a1

Web Price
$20.99 / each
Qty

Product Details

Light Duty
440C Stainless Steel Spherical
0.5 in
Stainless Steel
440C
440C Stainless Steel Spherical Ball
1/4 in
+0.0015/-0.0005 in
Follows SAE Specification J1120
China
1/4-28
0.250/0.252 in
0.75 in
1.562 in
1.0 in
1.937 in
0.375 in
3/4 in
0.25 in
300 Series Stainless Steel
Stainless Steel
Chrome Plated
0.375 in
0.250/0.252 in
27 Degrees
27 Degrees
1 7/8 in
1
PTFE
Corrosion Resistant
Spherical Rod End
Yes
Right Hand
Male
1 in
1/4-28
Male Plain
ISO Certified 9001
2,165 lb
2,165 lbf
Inch
Right Hand
1/4-28
Male Plain
