Home / Male Rod End, RH, 5/16-24

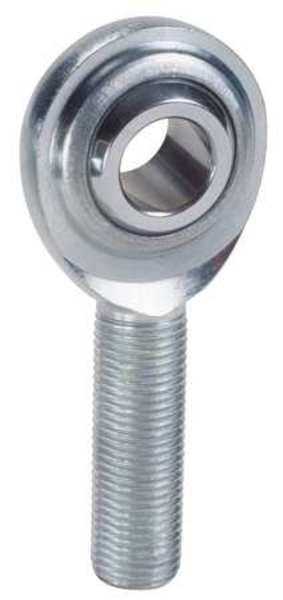

Male Rod End, RH, 5/16-24
Male Rod End, RH, 5/16-24

Male Rod End, RH, 5/16-24

  • Qa1
  • Raw Materials

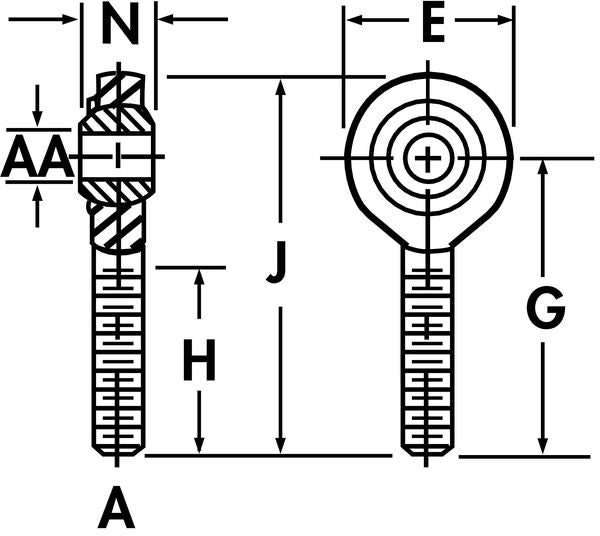

  • Spherical Rod End, System of Measurement Inch, Bore Diameter 5/16 in, Head Outside Diameter 7/8 in, Head Width 0.312 in, Shank Thread Length 1 1/4 in, Shank Thread Size 5/16 In.-24, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 0.625 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.437 in, Maximum Ball Swivel 22 Degrees

    graingerSKU: 20F979, mscSKU: , zoro_no: G4969194, mongo_id: 65bbe7649a749db822735a62

Web Price
$5.36 / each
Qty

Product Details

Light Duty
52100 Steel Spherical
0.625 in
Alloy Steel
52100
52100 Steel Spherical Ball
5/16 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
5/16-24
0.3125/0.3145 in
0.875 in
1.875 in
1.25 in
2.313 in
0.437 in
7/8 in
0.312 in
Carbon Steel
Carbon Steel
Chrome Plated
0.437 in
0.3125/0.3145 in
22 Degrees
22 Degrees
2 5/16 in
1
Not Applicable
Corrosion Resistant
Spherical Rod End
Yes
Right Hand
Male
1 1/4 in
5/16-24
Male Plain
ISO Certified 9001
4,517 lb
4,517 lbf
Inch
Right Hand
5/16-24
Male Plain
