Home / Male Rod End, Nylon/PTFE, LH, 1/4-28

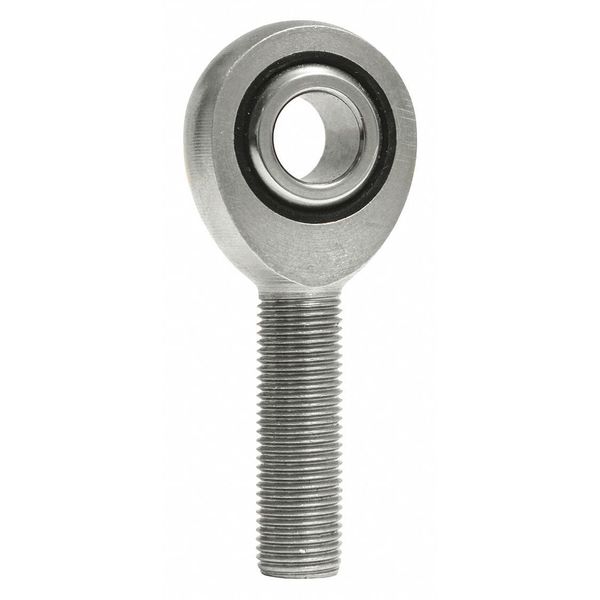

Male Rod End, Nylon/PTFE, LH, 1/4-28
Male Rod End, Nylon/PTFE, LH, 1/4-28

Male Rod End, Nylon/PTFE, LH, 1/4-28

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Inch, Bore Diameter 1/4 in, Head Outside Diameter 3/4 in, Head Width 0.281 in, Shank Thread Length 1 in, Shank Thread Size 1/4 In.-28, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Low Load, Moderate Oscillation, Ball Diameter 0.5 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.375 in

    graingerSKU: 20F914, mscSKU: , zoro_no: G4426091, mongo_id: 65bbe83b9a749db82277d49f

Web Price
$5.56 / each
Qty

Product Details

Low Load, Moderate Oscillation
52100 Steel Spherical
0.5 in
Alloy Steel
52100
52100 Steel Spherical Ball
1/4 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
1/4-28
0.250/0.252 in
0.75 in
1.562 in
1.0 in
1.937 in
0.375 in
3/4 in
0.281 in
Carbon Steel
Carbon Steel
Chrome Plated
0.375 in
0.250/0.252 in
16 Degrees
16 Degrees
1 7/8 in
1
Nylon/PTFE
Corrosion Resistant, High Wear Resistant, Low Moisture Absorption
Spherical Rod End
Yes
Left Hand
Male
1 in
1/4-28
Male Plain
ISO Certified 9001
2,470 lb
2,470 lbf
Inch
Left Hand
1/4-28
Male Plain
