Home / Female Stud Rod End, RH, 5/16-24
Female Stud Rod End, RH, 5/16-24
Female Stud Rod End, RH, 5/16-24

Female Stud Rod End, RH, 5/16-24

  • Qa1
  • Raw Materials

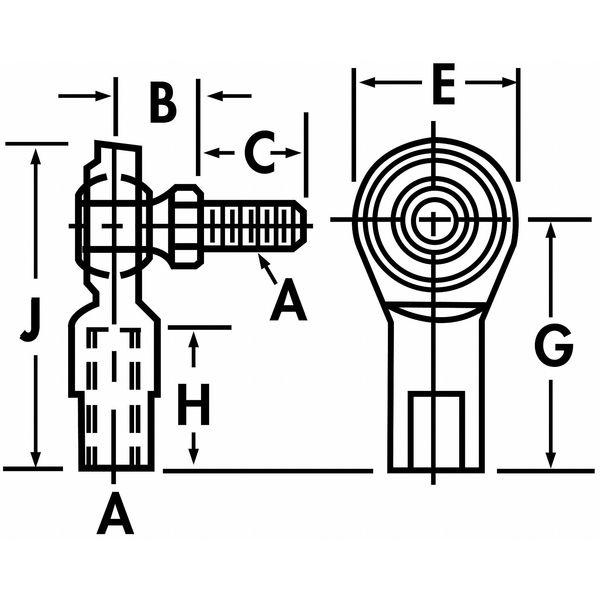

  • Spherical Rod End, System of Measurement Inch, Ball Stud Center Length 1 3/16 in, Ball Stud Thread Length 9/16 in, Ball Stud Thread Size 5/16 In.-24, Bore Diameter 5/16 in, Head Outside Diameter 7/8 in, Head Width 0.312 in, Shank Thread Length 5/8 in, Shank Thread Size 5/16 In.-24, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 0.625 in, Ball Material Alloy Steel, Ball Material Grade 52100, Ball Stud Material Carbon Steel

    graingerSKU: 20F995, mscSKU: , zoro_no: G4724081, mongo_id: 65bbe80722d7a989a98d2d96

Web Price
$9.49 / each
Qty

Product Details

Light Duty
52100 Steel Spherical
0.625 in
Alloy Steel
52100
1 3/16 in
Carbon Steel
Right Hand
9/16 in
5/16-24
52100 Steel Spherical Ball
5/16 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
5/16-24
0.532 in
0.687 in
0.875 in
1.375 in
0.687 in
1.813 in
7/8 in
0.312 in
Carbon Steel
Carbon Steel
Chrome Plated
0.437 in
22 Degrees
22 Degrees
1 13/16 in
1
Not Applicable
Corrosion Resistant
Spherical Rod End
Yes
Right Hand
Female
5/8 in
5/16-24
Female Studded
ISO Certified 9001
5,110 lb
5,110 lbf
0.687 in
Inch
Right Hand
5/16-24
Female Studded
