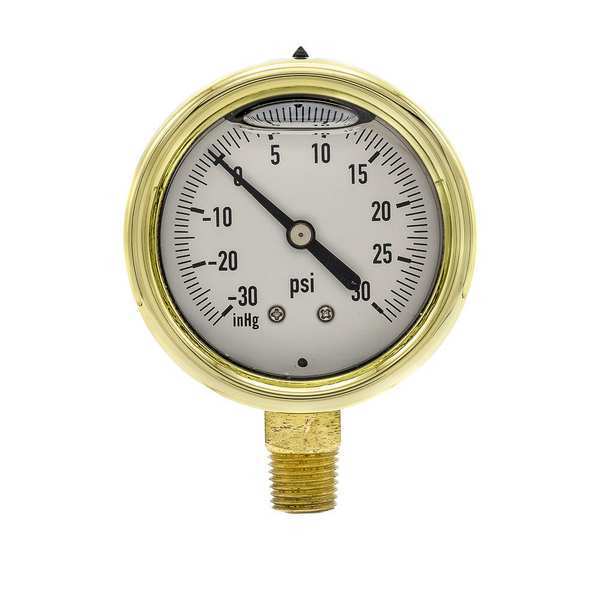

Compound Gauge, -30 to 0 to 30 in Hg/psi, 1/4 in MNPT, Brass, Gold

Home / Compound Gauge, -30 to 0 to 30 in Hg/psi, 1/4 in MNPT, Brass, Gold

Compound Gauge, -30 to 0 to 30 in Hg/psi, 1/4 in MNPT, Brass, Gold

SKU
Brand Pic Gauges
Categories Raw Materials
Description Industrial Compound Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Forged Brass, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Gold, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0 to 30, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
graingerSKU: 20TY10, mscSKU: , zoro_no: G9721345, mongo_id: 65bbe82222d7a989a98dcb7e

Web Price

$49.31 / each

Qty

Product Details

Accuracy +/-2-1-2%

Accuracy Grade ASME B40.100 Grade A

Accuracy Scale Mid-Scale

Ambient Operating Temperature Range -30 Degrees to 180 Degrees F

Application General Purpose

Basic Gauge Case Material Brass

Basic Gauge Lens Material Plastic

Basic Gauge Sensor Material Copper

Basic Gauge Socket Material Copper

Basic Gauge Wetted Parts Copper

Bezel Material Stainless Steel

Bezel Mounting Type Fixed

Blowout Safety Back No

Calibration Certificate Included No

Case Color Gold

Case Depth 1.49 in

Case Diameter 2.58 in

Case Material Brass

Cleaned for Oxygen Service No

Connection Location Lower

Connection Size 1/4 in NPT

Country of Origin (subject to change) China

Dial Color White

Dial Face Color White

Dial Size (In.) 2-1/2

Diameter 2.58

Dry Dampening Feature None

Field Fillable No

Freeze Resistant Movement No

Gauge Accuracy +/-2-1-2%

Gauge Accuracy Grade Grade A - Industrial

Gauge Application In Applications Where Vibration or Pulsation is Present

Gauge Case Color Gold

Gauge Case Liquid Glycerin

Gauge Case Material Forged Brass

Gauge Connection Location Bottom

Gauge Connection Size 1/4 in

Gauge Connection Type MNPT

Gauge Filled With Glycerin

Gauge Lens Material Polycarbonate

Gauge Nominal Dial Size 2 1/2 in

Gauge Panel Mountable No

Gauge Primary Range Smallest Graduation 1/0.5

Gauge Primary Range Units in Hg/psi

Gauge Primary Range Values -30 to 0 to 30

Gauge Sensor Material Copper Alloy

Gauge Socket Material Copper Alloy

Gauge Wetted Parts Copper

Hazardous Location Rating Not Rated

Includes Vent Plug

Includes Calibration Certificate No

Includes Mounting Hardware No

Includes Vent Plug Yes

IP/NEMA Rating Not Rated

Length 3.32

Lens Material Polycarbonate

Lens Material - Gauge Plastic

Liquid Filled Yes

Liquid-Filled Case Yes

Manufacturer Warranty Length 1 yr

Manufacturers Warranty Length 1 yr

Material Forged Brass

Max. Pressure (PSI) 30

Nominal Dial Size 2 1/2 in

Non-Sparking No

Operating Temp. Range 30 Degrees to 160 Degrees F

Package Quantity 1

Panel-Mountable No

Pointer Color Black

Pointer Material Aluminum

Pressure and Vacuum Gauge Type Compound Gauge

Pressure Gauge Type Industrial Pressure Gauge

Pressure Range 30 to 0 to 30 in Hg/psi

Pressure Range Type Compound

Primary Pressure Range 30 to 0 to 30

Primary Scale Units in Hg/psi

Process Connection 1/4 in NPT Male

Process Connection Gender Male

Process Connection Location Bottom

Process Connection Size 1/4 in

Process Connection Type NPT

Range 30 in Hg Vac to 30 psi

Removable Bezel No

Scale Type Single

Sensor Material Copper Alloy

Series 601L

Smallest Graduation 0.5 psi, 1 in Hg

Socket Material Copper Alloy

Standards ASME

Vibration Resistance Liquid-Filled
