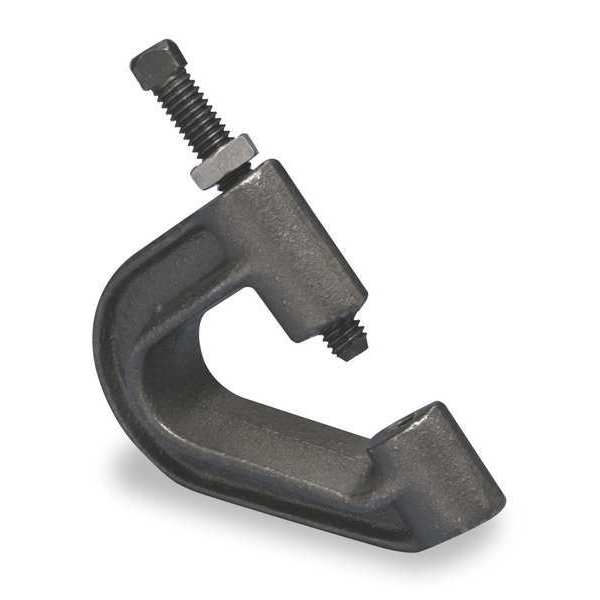

Purlin Clamp, 3/8 IN Rod Size

Home / Purlin Clamp, 3/8 IN Rod Size

Purlin Clamp, 3/8 IN Rod Size

SKU
Brand Nvent Caddy
Categories Raw Materials
Description Beam Clamp, Beam Clamp Type Purlin Clamp, Beam Mount Location Bottom, Top, Clamp Length 2 in, Clamp Material Cast Iron, Clamp Material Finish Not Applicable, Clamp Width 1.5 in, For Beam Shape/Type C-Purlin, For Threaded Rod Size 3/8 in, Load Capacity 400 lb, Series 315, Standards cUL Listed, FM Approved, UL Listed
graingerSKU: 1RUY7, mscSKU: , zoro_no: G0992984, mongo_id: 65bbe77b3aaddbd5a9099dbe

Web Price

$17.11 / each

Qty

Product Details

Beam Clamp Type Purlin Clamp

Beam Mount Location Bottom, Top

Bolt Material Malleable Iron

Clamp Height 1 in

Clamp Length 2 in

Clamp Material Cast Iron

Clamp Material Finish Not Applicable

Clamp Width 1.5 in

Country of Origin (subject to change) China

Description/Special Features Attaches to Lower Flange of Metal Beams or Purlins, Supports 45 Degrees Flanges Up to 2 in L, and 90 Degrees Flanges Up to 1-1/2 in H

Features Supports 45 Degrees Flanges up to 2 in Long, and 90 Degrees Flanges up to 1 1/2 in High

Finish Plain

For Beam Shape/Type C-Purlin

For Maximum Pipe Size 4 in

For Threaded Rod Size 3/8 in

Height (In.) 1 in

Length (In.) 2 in

Load Capacity 400 lb

Material Cast iron

Max. Load (Lb.) 400

Metal Detectable Yes

Nominal Conduit/Pipe 3/8

Package Quantity 1

Pipe Size (In.) 4 in

Rod Size 3/8

Rod Size (RS) 0.38

Screw Diameter (Sc) 0.38-0.38

Series 315

Standards Conforms with Federal Specification WW-H-171 (Type 23), Manufacturers Standardization Society ANSI(R)/MSS-SP-58 (Type 23), UL Listed and FM Approved

Static Load (F) 1779

Sub-Category Clamps

Thread Size (In.) 3/8

Torque (TQ) 6.78-6.78

Type Purlin

Width (In.) 1 1/2 in
