Home / Taper Roller Bearing Cone, 3.542 Bore In

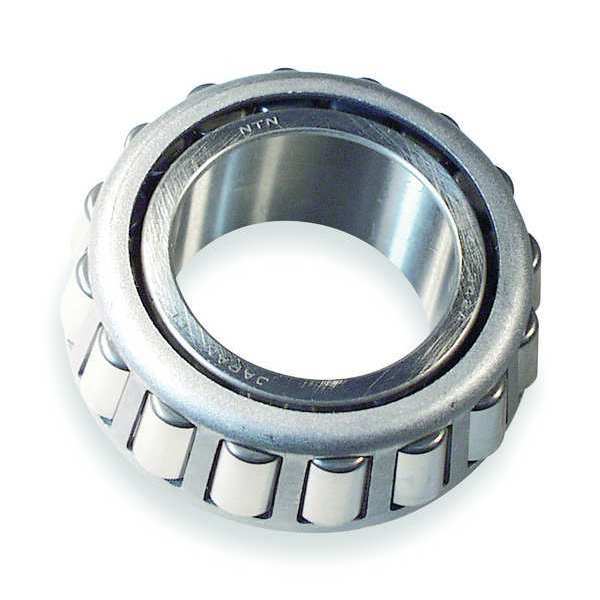

Taper Roller Bearing Cone, 3.542 Bore In
Taper Roller Bearing Cone, 3.542 Bore In

Taper Roller Bearing Cone, 3.542 Bore In

  • Ntn
  • Adhesives, Epoxy & Sealants
  • Tapered Roller Bearing Cone, Bearing Industry Number HM218248, Bore Diameter 3 17/32 in, Bore Type Cylindrical, Cage Material Pressed Steel, Compatible Cup Grainger Part Number 1YTY2, Compatible Cup Manufacturer Part Number HM218210, Cone Width 1.575 in, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Number of Rows One, Outside Diameter 5.551 in, Ring Material Alloy Steel, Roller Material Alloy Steel, System of Measurement Inch, Bore Diameter Tolerance +0 to 0.013 mm
Web Price
$77.24 / each
Qty

Product Details

ABMA
HM218248
3.5423 in
3 17/32 in
+0 to 0.013 mm
Cylindrical
Steel
HM218210
1.5748 in
United States
252 kN
56,000 lb
1YTY2 Taper Roller Bearing Cup
3.542 in
Not Lubricated
0.28 in
250 Degrees F
-40 Degrees F
One
5.551 in
1
Steel (G4104)
Alloy Steel
52100
Alloy Steel
52100
7 mm
ABMA
340 kN
87,500 lb
Inch
-40 Degrees to 250 Degrees F
Inch Series
