Home / 1", Socket Weld, Cast Carbon Steel, Y Strainer
1

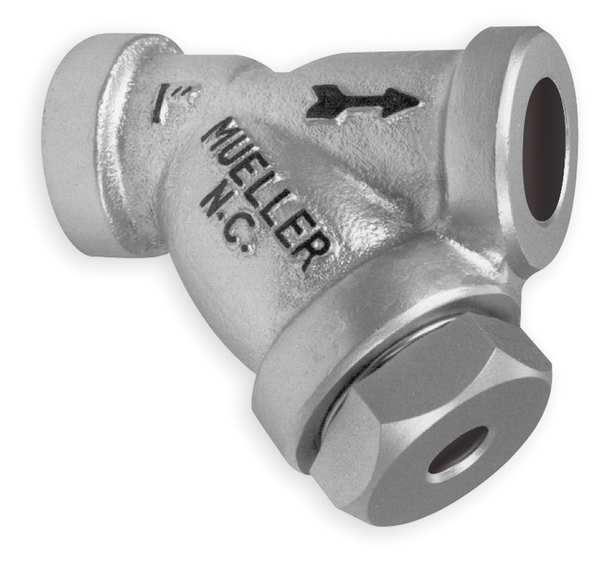

1", Socket Weld, Cast Carbon Steel, Y Strainer

  • Mueller Steam Specialty
  • Raw Materials
  • Y Strainer, Pipe Size 1 in, Maximum Pressure at 100 deg F 1,480 psi, Length 4 5/8 in, Height 5 1/4 in, Blow Off Port 3/8 in, Screen Material 304 Stainless Steel, Perforated Screen Size 0.062 in, Housing Material Carbon Steel, Class 600, Cv Flow Factor 15 gpm, For Use With Steam, Water, Includes Screen Yes, Maximum Pressure 1,015 psi @ 750 Degrees F, 1,480 psi @ -20 Degrees F to 100 Degrees F, Maximum Temperature 100 Degrees F, Port 1 Connection Size 1 in, Port 1 Connection Type Socket

    graingerSKU: , mscSKU: , zoro_no: G2272182, mongo_id: 65bbe73d9a749db8227283e3

Web Price
$193.74 / each
Qty

Product Details

3/8 in
3/8
600
Socket Weld
United States
15 gpm
Steam, Water
Spiral Wound Graphite Filled
5 1/4 in
Cast Carbon Steel
Yes
4-9/16
100 Degrees F
1480 psi @ 100 Degrees F WOG, 1010 psi @ 750 Degrees F WSP
1,015 psi @ 750 Degrees F, 1,480 psi @ -20 Degrees F to 100 Degrees F
1,480 psi
100 Degrees F
1/16
1
0.062 in
1
1 in
Socket
1 in
Socket Weld
3/8 in
NPT
0.06 sq. in.
304 Stainless Steel
0.062 in
Spiral Wound Graphite Filled
582
ASSE, CSA, FM, NSF, UL, ULC, USC, WQA
Push-In Socket Connection
Perforated
