Home / Pwr Dist Block, 760A, 1P, 4P Secondary, 600V

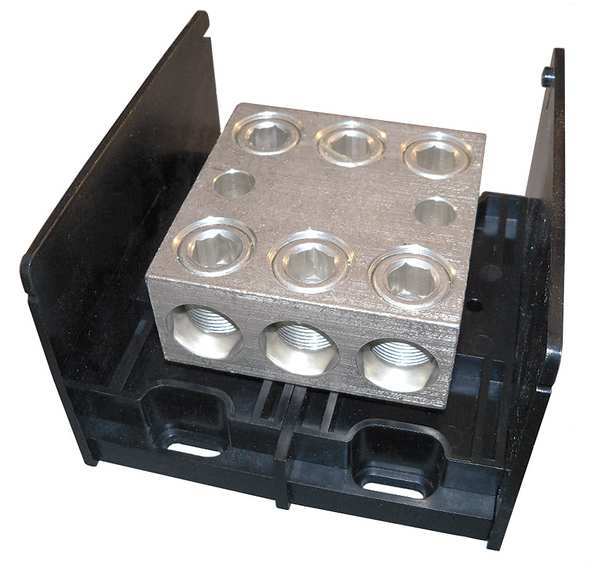

Pwr Dist Block, 760A, 1P, 4P Secondary, 600V

Pwr Dist Block, 760A, 1P, 4P Secondary, 600V

  • Mersen
  • Power Distribution Block, For Conductor Material Aluminum, Line Connections/Pole 3, For Line Copper Wire Size - Minimum 2 AWG, For Line Copper Wire Size - Maximum 600 kcmil, Load Connections/Pole 3, For Load Copper Wire Size - Minimum 2 AWG, For Load Copper Wire Size - Maximum 600 kcmil, Maximum Current - Copper Conductor 1,260 A, Maximum Voltage 1,000 V AC/DC, Mounting Type Surface Mount, Number of Poles 1, Overall Depth 3.55 in, Overall Length 5.7 in, Overall Width 5.32 in

    graingerSKU: 25CC44, mscSKU: , zoro_no: G5364466, mongo_id: 65bbe9e622d7a989a9983a45

Web Price
$500.86 / each

Product Details

Splicing cables; Splitting primary power into secondary circuits; Fixed junction tap-off points.
UL Listed to subject 1953, File E352417 unless noted otherwise; CSA Certified Class 6228 01
GFPC
Tin-plated Aluminum
Box
Box
Mexico
3.55 in
Flammability Rating 94 V-0; GFPC Insulators; 1 inch through air and 2 inches over surface spacing available
Aluminum
600 kcmil
2 AWG
600 kcmil
2 AWG
600 kcmil
2 AWG
600 kcmil
2 AWG
15/16-16 x 1.25
15/16-16 x 1.25
0.94 in
0.94 in
Black
GFPC
Polycarbonate Safety Covers
Direct Screw Mount
PWR DIS BLK AL LG 1260A DW 3
5.7 in
5.7 in
3
Lug
2 AWG - 600 kcmil
3
Lug
2 AWG - 600 kcmil
760 A
80°C
1,260 A
1,260 A
1,000 V AC/DC
Direct Screw Mount
1
3
3
1
3.55 in
5.7 in
5.32 in
1
Open
2
600-2
600-2
3.55 in
5.7 in
5.31 in
1000 V
1000 V
Yes
21
2 AWG to 600 kcmil
6 to 4/0 AWG
10 kA
MPDB UL1953 AL LARGE 1000V 1260A 1-pole 3 600-#2 in-3 600-#2 out Box/Box
CSA Class 6228-01, UL 1953
Aluminum
600-#2 600
600-#2 600
V-0
600V AC/DC
2.73 in
600-#2
600-#2
