Home / Pwr Dist Block, 760A, 1P, 12P Secndary, 600V

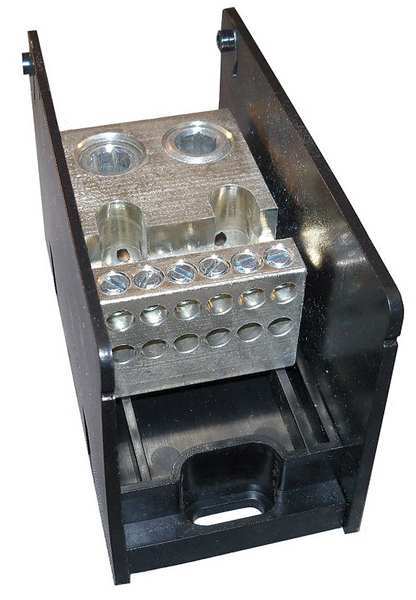

Pwr Dist Block, 760A, 1P, 12P Secndary, 600V

Pwr Dist Block, 760A, 1P, 12P Secndary, 600V

  • Mersen
  • Power Distribution Block, For Conductor Material Aluminum, Line Connections/Pole 2, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 12, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 4 AWG, Maximum Current - Copper Conductor 760 A, Maximum Voltage 1,000 V AC/DC, Mounting Type Surface Mount, Number of Poles 1, Overall Depth 3.55 in, Overall Length 5.7 in, Overall Width 2.73 in

    graingerSKU: 25CC35, mscSKU: , zoro_no: G5258513, mongo_id: 65bbe97422d7a989a99587b3

Web Price
$129.88 / each

Product Details

Splicing cables; Splitting primary power into secondary circuits; Fixed junction tap-off points.
UL Listed to subject 1953, File E352417 unless noted otherwise; CSA Certified Class 6228 01
GFPC
Tin-plated Aluminum
Box
Box
Mexico
3.55 in
Flammability Rating 94 V-0; GFPC Insulators; 1 inch through air and 2 inches over surface spacing available
Aluminum
500 kcmil
4 AWG
500 kcmil
4 AWG
4 AWG
14 AWG
4 AWG
14 AWG
13/16-16 x 1.06
5/16-24 x .38
0.88 in
0.27 in
Black
GFPC
Polycarbonate Safety Covers
Direct Screw Mount
PWR DIS BLK AL LG 760A 1P 12
5.7 in
5.7 in
2
Lug
4 AWG - 500 kcmil
12
Lug
14 AWG - 4 AWG
760 A
80°C
760 A
760 A
1,000 V AC/DC
Direct Screw Mount
1
2
12
1
3.55 in
5.7 in
2.73 in
1
Open
2
4 AWG to 500 kcmil
4 AWG to 500 MCM
3.55 in
5.7 in
2.73 in
1000 V
1000 V
Yes
12
14 to 4 AWG
14 to 4 AWG
30 kA
60 kA
600 kA
800 kA
600 kA
600 kA
800 kA
10 kA
MPDB UL1953 AL LARGE 1000V 760A 1-pole 2 500-#4 in-12 #4-#14 out Box/Box
CSA Class 6228-01, UL 1953
Aluminum
500-#4 500
#4-#8 40; #10-#14 35
V-0
600V AC/DC
2.73 in
500-#4
#4-#14
