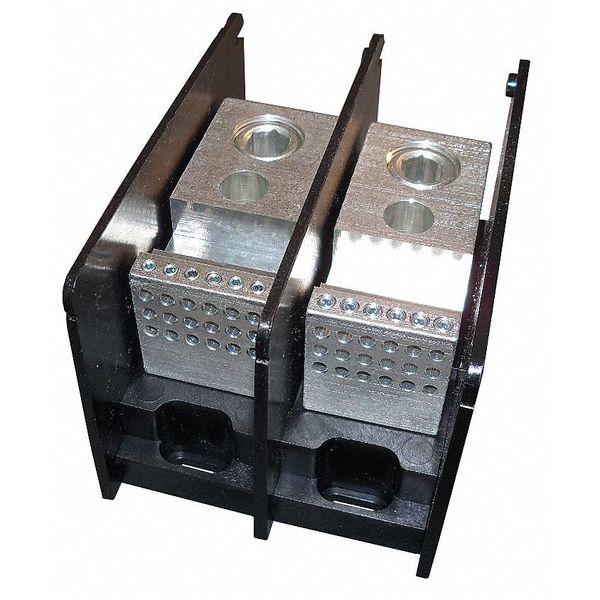

Home / Pwr Dist Block, 380A, 2P, 4AWG-500 MCM, 600V
Pwr Dist Block, 380A, 2P, 4AWG-500 MCM, 600V

Pwr Dist Block, 380A, 2P, 4AWG-500 MCM, 600V

  • Mersen
  • Power Distribution Block, For Conductor Material Aluminum, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 18, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 10 AWG, Maximum Current - Copper Conductor 380 A, Maximum Voltage 1,000 V AC/DC, Mounting Type Surface Mount, Number of Poles 2, Overall Depth 3.25 in, Overall Length 3.08 in, Overall Width 3.57 in

    graingerSKU: 25CC20, mscSKU: , zoro_no: G5386446, mongo_id: 65bbe81522d7a989a98d7763

Web Price
$106.02 / each

Product Details

Splicing cables; Splitting primary power into secondary circuits; Fixed junction tap-off points.
UL Listed to subject 1953, File E352417 unless noted otherwise; CSA Certified Class 6228 01
GFPC
Tin-plated Aluminum
Box
Box
Mexico
3.25 in
Flammability Rating 94 V-0; GFPC Insulators; 1 inch through air and 2 inches over surface spacing available
Aluminum
500 kcmil
4 AWG
500 kcmil
4 AWG
10 AWG
14 AWG
10 AWG
14 AWG
13/16-16 x 1.06
8-32 (.164) x .25
0.88 in
0.14 in
Black
GFPC
Polycarbonate Safety Covers
Direct Screw Mount
PWR DIS BLK AL INT 380A 2P 18
5.0 in
5.0 in
1
Lug
4 AWG - 500 kcmil
18
Lug
14 AWG - 10 AWG
380 A
80°C
380 A
380 A
1,000 V AC/DC
Direct Screw Mount
2
1
18
2
3.25 in
3.08 in
3.57 in
1
Open
1
4 AWG to 500 kcmil
4 AWG to 500 MCM
3.25 in
3.08 in
3.57 in
1000 V
1000 V
Yes
18
14 to 10 AWG
14 to 10 AWG
30 kA
60 kA
400 kA
400 kA
200 kA
100 kA
400 kA
10 kA
MPDB UL1953 AL INT 1000V 380A 2-pole 1 500-#4 in-18 #10-#14 out Box/Box
CSA Class 6228-01, UL 1953
Aluminum
500-#4 500
#10-#14 15
V-0
600V AC/DC
3.57 in
500-#4
#10-#14
