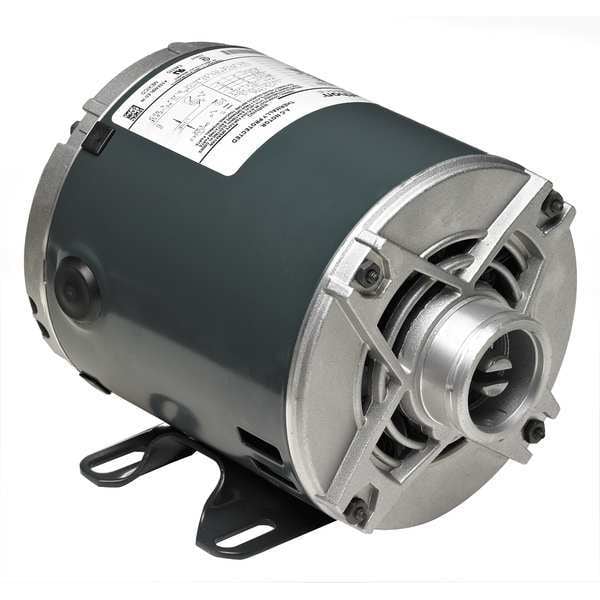

Pump Mtr, Split Ph, 1/3hp, 1725,220-240, 48Y

Home / Pump Mtr, Split Ph, 1/3hp, 1725,220-240, 48Y

Pump Mtr, Split Ph, 1/3hp, 1725,220-240, 48Y

SKU
Brand Marathon Motors
Categories Pumps
Description Carbonator Pump Motor, Body Dia. 5.6 in, Duty Cycle Continuous, Frame 48Y, Hz 60, Full Load Amps 2.7, Height 5 13/16 in, HP 1/3 hp, Ins. Class B, Length Less Shaft 7 1/2 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Split-Phase, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
graingerSKU: 2K457, mscSKU: , zoro_no: G2080775, mongo_id: 65bbe6c23aaddbd5a904ec2e

Web Price

$277.49 / each

Qty

Product Details

Body Dia. 5.6 in

Country of Origin (subject to change) Mexico

Duty Cycle Continuous

Frame 48Y

Full Load Amps 2.7

Height 5 13/16 in

HP_ 1/3 hp

Hz_ 60

Ins. Class B

Length Less Shaft 7 1/2 in

Max. Ambient Temp. 40 Degrees C

Motor Application Pump

Motor Bearings Ball

Motor Design Split-Phase

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position All Angle

Motor Mounting Type Cradle Base

Motor Service Factor 1

Motor Shaft Rotation CW/CCW

Motor Sub Application Carbonator Pump

Motor Thermal Protection Auto

Nameplate RPM 1,725

No. of Speeds 1

Nominal Efficiency 61.1 %

Overall Length 7 11/16 in

Package Quantity 1

Phase Single

RPM @ 50Hz 1,425

RPM Range 1,701-1,800

Shaft Dia. 5/8 in

Shaft Dia. (In.) 5/8

Shaft Length 1/4 in

Standards CE Mark, CSA Certified, UL Recognized

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 14 lb
