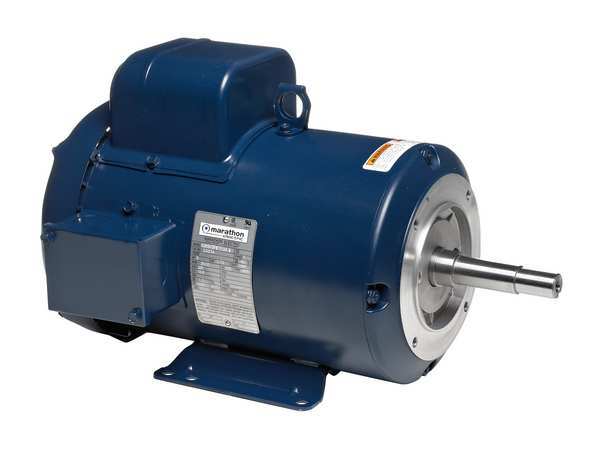

Pump Motor, 1-Ph, 10 HP, 3400-3600,215JM

Home / Pump Motor, 1-Ph, 10 HP, 3400-3600,215JM

Pump Motor, 1-Ph, 10 HP, 3400-3600,215JM

SKU
Brand Marathon Motors
Categories Pumps
Description Close-Coupled Pump Motor, Body Dia. 11.1 in, Bolt Circle Dia. 7 1/4 in, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 215JM, Hz 60, Full Load Amps 41.5, Height 11 in, HP 10 hp, Ins. Class F, Inverter Rated No, Length Less Shaft 17 13/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Frame Material Steel
graingerSKU: null, mscSKU: null, zoro_no: G9922516, mongo_id: 65bbe5f53aaddbd5a9ff8cc2

Web Price

$2,631.24 / each

Qty

Product Details

Body Dia. 11.1 in

Bolt Circle Dia. 7 1/4 in

Conduit Box Position F1, F2

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 215JM

Frame Material Rolled steel

Full Load Amps 41.5

Height 11 in

HP_ 10 hp

Hz_ 60

Ins. Class F

Inverter Rated No

Length Less Shaft 17 13/16 in

Max. Ambient Temp. 40 Degrees C

Motor Application Pump

Motor Bearings Ball

Motor Design Capacitor-Start/Run

Motor Efficiency Group Standard Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Face/Base

Motor Service Factor 1.15

Motor Shaft Design Keyed, Threaded

Motor Shaft Rotation CW/CCW

Motor Sub Application Close-Coupled Pump

Motor Thermal Protection None

Nameplate RPM 3,500

No. of Speeds 1

Nominal Efficiency 83.8 %

Overall Length 22 1/16 in

Package Quantity 1

Phase Single

RPM Range 3,001-3,600

Shaft Dia. 7/8 in

Shaft Length 4 1/4 in

Shaft Type JM Threaded

Standards CE, CSA, IP 22, NEMA JM, UL

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 236 lb
