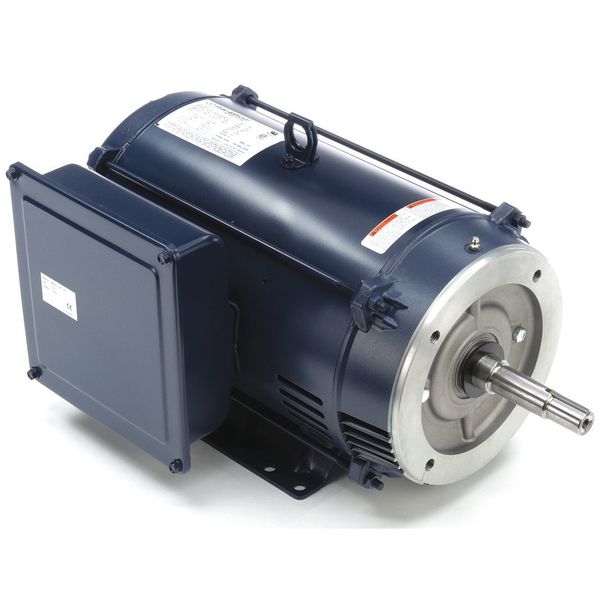

Close-Coupled Pump Motor10 HP, 1730 rpm

Home / Close-Coupled Pump Motor10 HP, 1730 rpm

Close-Coupled Pump Motor10 HP, 1730 rpm

SKU
Brand Marathon Motors
Categories Pumps
Description Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 215JM, Hz 60, Full Load Amps 44.0, Height 11 5/8 in, HP 10 hp, Ins. Class F, Inverter Rated No, Length Less Shaft 16 15/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof
graingerSKU: 26ZY41, mscSKU: , zoro_no: G9824175, mongo_id: 65bbe6393aaddbd5a9015784

Web Price

$2,777.49 / each

Qty

Product Details

Body Dia. 9.5 in

Bolt Circle Dia. 7 1/4 in

Conduit Box Location Exterior

Conduit Box Position F1

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 215JM

Frame Material Rolled steel

Full Load Amps 44.0

Height 11 5/8 in

HP_ 10 hp

Hz_ 60

Ins. Class F

Inverter Rated No

Length Less Shaft 16 15/16 in

Max. Ambient Temp. 40 Degrees C

Motor Application Pump

Motor Bearings Ball

Motor Design Capacitor-Start/Run

Motor Efficiency Group Standard Efficient

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Face/Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Sub Application Close-Coupled Pump

Motor Thermal Protection None

Nameplate RPM 1,730

NEMA Design L

No. of Speeds 1

Nominal Efficiency 82.5 %

Overall Length 21 3/16 in

Package Quantity 1

Phase Single

RPM Range 1,701-1,800

Shaft Dia. 7/8 in

Shaft Length 4 1/4 in

Shaft Type JM Threaded

Standards CE, CSA, UL Recognized

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 159 lb
