Home / Close-Coupled Pump Motor, 3-Phase, 10 HP

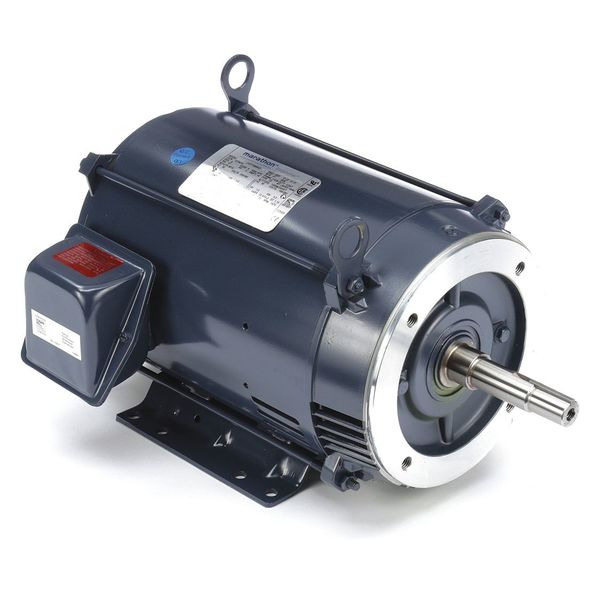

Close-Coupled Pump Motor, 3-Phase, 10 HP

Close-Coupled Pump Motor, 3-Phase, 10 HP

  • Marathon Motors
  • Pumps
  • Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 215JM, Hz 60, Full Load Amps 25.4/12.7, Height 11 in, HP 10 hp, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 15 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
Web Price
$1,709.99 / each
Qty

Product Details

9.5 in
7 1/4 in
CC003A
Exterior
F1, F2
Mexico
Continuous
Continuous
215JM
Rolled steel
25.4/12.7
NEMA Premium(R) Rated
11 in
10 hp
60
F
Yes
10:1 Variable Torque, 2:1 Constant Torque
15 in
40 Degrees C
Pump
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Steel
Horizontal
Face/Base
1.15
JM Threaded
CW/CCW
Close-Coupled Pump
None
1,770
B
1
91.7 %
19 1/4 in
1
Three
1,701-1,800
7/8 in
4 1/4 in
Keyed
CE Mark, CSA Certified, UL Recognized
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
185 lb
