Home / CC Pump Motor, 3-Phase, TEFC, 3HP, 230/460V

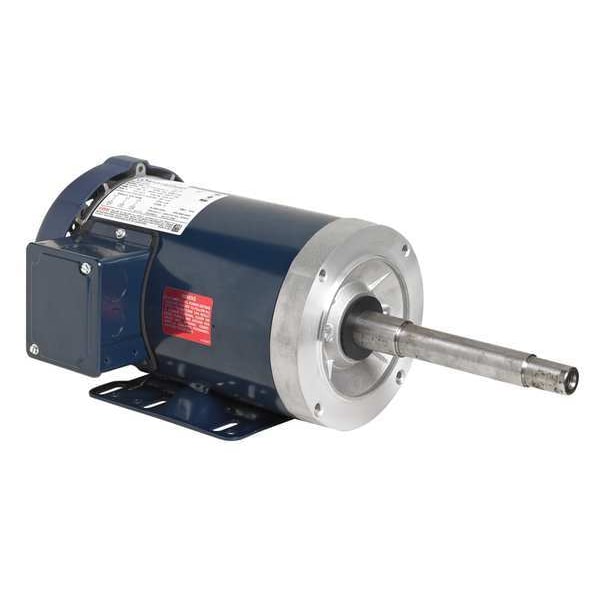

CC Pump Motor, 3-Phase, TEFC, 3HP, 230/460V

CC Pump Motor, 3-Phase, TEFC, 3HP, 230/460V

  • Marathon Motors
  • Pumps
  • Close-Coupled Pump Motor, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 182JP, Hz 60, Full Load Amps 8.0/4.0, Height 9 13/16 in, HP 3 hp, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1, Length Less Shaft 13 1/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled

    graingerSKU: 29FH26, mscSKU: , zoro_no: G5808616, mongo_id: 65bbe6e43aaddbd5a905d299

Web Price
$931.24 / each
Qty

Product Details

5 7/8 in
CC003A
F1, F2
Mexico
Continuous
Continuous
182JP
Rolled steel
8.0/4.0
NEMA Premium(R) Rated
9 13/16 in
3 hp
60
F
Yes
10:1
13 1/8 in
40 Degrees C
Pump
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Steel
Horizontal
Face/Base
1.15
JP Threaded
CW/CCW
Close-Coupled Pump
None
1,760
1
89.5 %
20 7/16 in
1
Three
1,701-1,800
7/8 in
7 3/8 in
JP Threaded
CE, CSA, DIVISION 2 T2B, EISA2007, IP 43, UL
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
142 lb
