Home / CC Pump Motor, 3-Phase, 7-1/2 HP, 3450 rpm

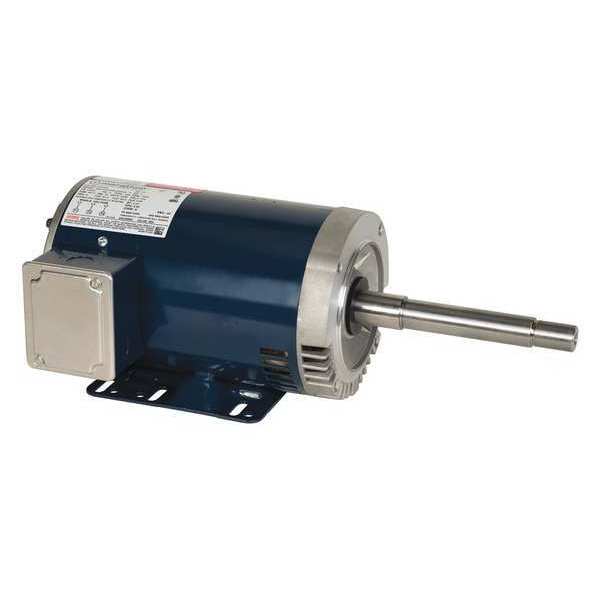

CC Pump Motor, 3-Phase, 7-1/2 HP, 3450 rpm

CC Pump Motor, 3-Phase, 7-1/2 HP, 3450 rpm

  • Marathon Motors
  • Pumps
  • Close-Coupled Pump Motor, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 184JP, Hz 60, Full Load Amps 18.4/9.2, Height 9 13/16 in, HP 7 1/2 hp, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 14 1/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
Web Price
$1,038.74 / each
Qty

Product Details

5 7/8 in
CC003A
Exterior
F1, F2
Mexico
Continuous
Continuous
184JP
Rolled steel
18.4/9.2
NEMA Premium(R) Rated
9 13/16 in
7 1/2 hp
60
F
Yes
10:1 Variable Torque, 2:1 Constant Torque
14 1/8 in
40 Degrees C
Pump
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Steel
Horizontal
Face/Base
1.15
Keyed
CW/CCW
Close-Coupled Pump
None
3,510
A
1
88.5 %
21 7/16 in
1
Three
3,001-3,600
7/8 in
7 3/8 in
Keyway and Internal Thread
CE Mark, CSA Certified, UL Recognized
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
88 lb
