Home / Pump Seal Failure Relay, 2-SPNO, 120VAC

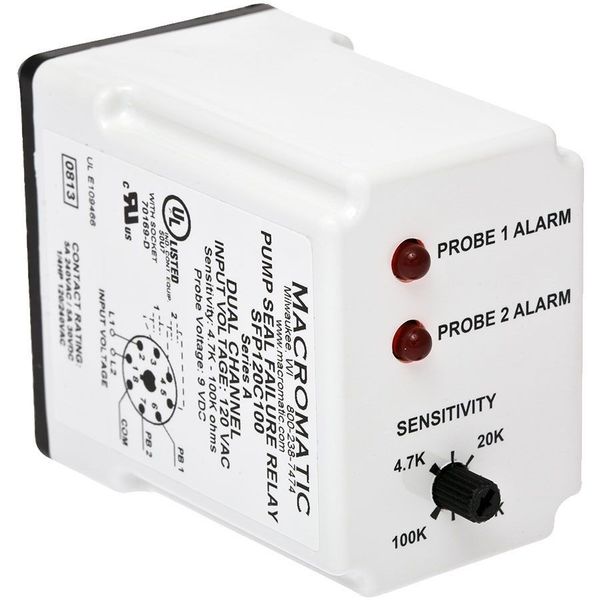

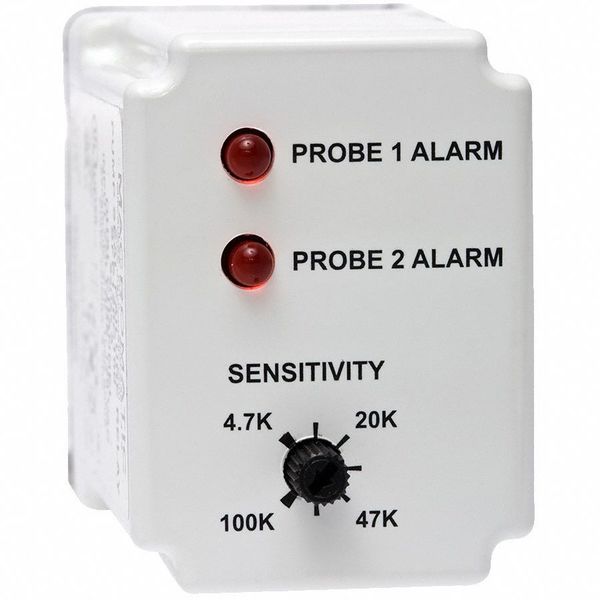

Pump Seal Failure Relay, 2-SPNO, 120VAC
Pump Seal Failure Relay, 2-SPNO, 120VAC
Pump Seal Failure Relay, 2-SPNO, 120VAC

Pump Seal Failure Relay, 2-SPNO, 120VAC

  • Macromatic
  • Pumps
  • Pump Seal Failure Relay, Contact Form SPST-NO, Current Rating 5 A, Electrical Connection 8-Pin Terminal, Input Voltage 120V AC, Number of Channels Dual Channel, Number of Pins 8, Relay Function Seal Leakage, Seal Leak Minimum Resistance 4,700 ohm, Seal Leak Maximum Resistance 100,000 ohm, Status Indicator LED Indicator, Contact Rating (AC) 5 A @ 240V, Contact Rating (DC) 5 A @ 28V, Mounting Style Plug-In, Adjustment Method Rotary Knob, Base Shape Octal, Body Depth 2.9 in, Body Height 2.33 in

    graingerSKU: 5WMJ8, mscSKU: , zoro_no: G0290202, mongo_id: 65bbe88b22d7a989a98fcc3b

Web Price
$137.49 / each
Qty

Product Details

Rotary Knob
Octal
2.9 in
2.33 in
1.71 in
3 VA at 5 A
120V AC
8 Pin Single Channel: SPDT10A @ 240V AC/7A @ 28V DC. 11 Pin Single Channel: DPDT7A @ 240V AC/28V DC. 8 Pin Dual Channel: (2) SPNO 5A @ 240V AC/28V DC
SPST-NO
5 A @ 240V
5 A @ 28V
120V AC
United States
5 A
8-Pin Terminal
Pin
100,000
Plug-in case utilizing industry-standard 8 & 11 pin octal sockets
Full Status Indication, Pulsed Probes, Automatic Reset when Fault Condition Clears
Submersible Pumps
50/60 Hz
Dual Channel 8 Pin (2) SPNO
Green ON with input voltage applied; Red ON when seal leak detected & relay is energized.
120V AC
Mechanical: 10,000,000 operations; Full Load: 100,000 operations
3 VA
10
149 Degrees F
10,000,000
-18 Degrees F
Plug-in
Plug-In
Dual Channel
8
5 A at 240V AC (Resistive Load), 5 A at 28V DC (Resistive Load)
(2) 5A SPNO
1
3 VA
5V DC Pulsed
120V AC
Seal Leakage
Socket
Seal Leakage
1 sec
100,000 ohm
4,700 ohm
4.7K to 100K ohms
A
Socket / Octal / 8
CE, cULus, cURus, UL Listed
LED Indicator
(2) SPNO
-28°to 65°C (-18°to 149°F)
120VAC
AC Operation: +10/-15% of nominal at 50/60 Hz.
