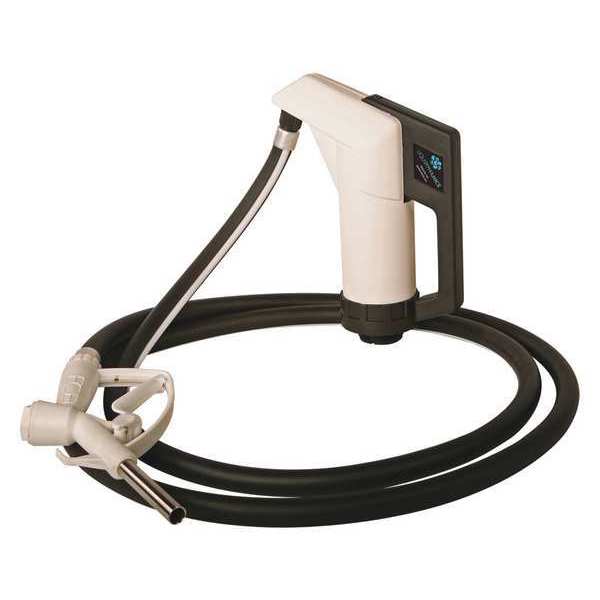

Hand Drum Pump, Lever, 3/4 in. FNPT Intel

Home / Hand Drum Pump, Lever, 3/4 in. FNPT Intel

Hand Drum Pump, Lever, 3/4 in. FNPT Intel

SKU
Brand Liquidynamics
Categories Pumps
Description Hand Operated Drum Pump, Max. Outlet Pressure 10 psi, Pump Connection OD 3/4 in, Self-Priming Yes, Metered No, Hose Length 12 ft, Includes Discharge Hose Yes, Piston Material Polypropylene, Features Dispenses 12 Strokes Per Gallon, Seal Material Viton, For Use With Anti-Freeze, Cleaners, Diesel Exhaust Fluid, Discharge Connection Type Hose Barb, For Container Type Drum, Tote, Hose Cover Material EPDM, Includes Bung Adapter No, Includes Nozzle Yes, Includes Spout Yes, Runs Dry Yes
graingerSKU: 45NA88, mscSKU: , zoro_no: G2440061, mongo_id: 65bbe9b522d7a989a9971aac

Web Price

$577.49 / each

Qty

Product Details

Action Type Lever

Adapter Type 2 Bung

Agency Compliance ISO 22241-3

Application Diesel Exhaust Fluid, Anti-Freeze, Cleaners

Compatible Chemicals Acetic Acid 20%, Ammonium Hydroxide, Antifreeze (Coolant), Citric Acid 50%, DEF, Deionized Water, Ethyl (Ethanol), Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropyl (Isopropanol), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%)

Country of Origin (subject to change) United Kingdom

Diesel Exhaust Fluid Compatible Yes

Discharge Connection Type Hose Barb

Discharge Tube Length 144

Discharge Tube Outlet ID 3/4 in

Discharge Tube Outlet OD 1 in

Duty Cycle Continuous

Features Dispenses 12 Strokes Per Gallon

Food Grade No

For Container Size 55 gal, 275 gal, 330 gal

For Container Type Drum, Tote

For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water

For Use With Anti-Freeze, Cleaners, Diesel Exhaust Fluid

Gasket Material Viton

Gear Lube NT

Grease NT

Height Above Container 14 in

Hose Cover Material EPDM

Hose Inside Dia. 3/4 in

Hose Length 12 ft

Hose Material Peroxide Cured EPDM

Hose Outside Dia. 1 in

Hose Tube Material EPDM

Housing Material Polypropylene

Housing Material - Pumps Polypropylene

Includes Hose, Nozzle, Telescoping Suction Pipe

Includes Bung Adapter No

Includes Discharge Hose Yes

Includes Nozzle Yes

Includes Spout Yes

Includes Suction Tube Yes

Inlet Size 3/4 FNPT

Manufacturers Warranty Length 30 days

Max. Flow Rate 10.6 oz per stroke

Max. Fluid Temp. 150 Degrees F

Max. Head - Pumps 3 ft

Max. Head Pressure 10 psi

Max. Liquid Temp. 140 Degrees F

Max. Oil Flow 10.6 oz per stroke

Max. Outlet Pressure 10 psi

Max. Temp. 140 Degrees F

Max. Viscosity 10 cps

Metered No

Min. Operating Temp. 17 Degrees F

Not Recommended Chemicals Acetic Acid (Glacial), Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, Diesel Fuel, E85, Ethyl Acetate, Fertilizers, Formic Acid, Fungicides, Gasoline, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene

Nozzle Material Polypropylene, Stainless Steel

Nozzle Operation Manual

Outlet Size 3/4 Barb

Package Quantity 1

pH Range 9.8 to 10

Piston Material Polypropylene

Power Source Hand Operated

Pump Body Material Polypropylene

Pump Connection ID 1 in

Pump Connection OD 3/4 in

Runs Dry Yes

Seal Material Viton
