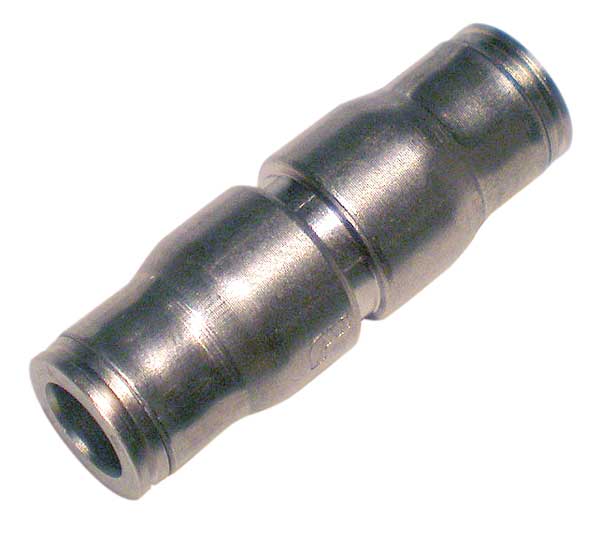

Nickel Plated Brass Union, 3/8 in Tube Size

Home / Nickel Plated Brass Union, 3/8 in Tube Size

Nickel Plated Brass Union, 3/8 in Tube Size

SKU
Brand Legris
Categories Raw Materials
Description Union, Application Food Processing, Harsh Detergents, Non-Potable Water, Oils, Steam, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 3/8 in, Fitting Side B Tube Outer Diameter 3/8 in, Fitting Material Brass, Color Silver, Includes Pre-Applied Thread Sealant No, Maximum Operating Pressure 435 psi, Maximum Operating Temperature 302 Degrees F, Overall Length 1 7/8 in, Specific Fitting Shape Straight Connector
graingerSKU: , mscSKU: 68967355, zoro_no: G0855836, mongo_id: 65bbe7293aaddbd5a907ab1a

Web Price

$18.61 / each

Qty

Product Details

Application Food Processing, Harsh Detergents, Non-Potable Water, Oils, Steam

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Union

Color Silver

Compatible Tube Hardness 95 Shore A

Compatible Tube Material Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel

Connection Type Push-to-Connect x Push-to-Connect

Country of Origin (subject to change) Spain

End Connection Type Push-to-Connect

Finish/Coating Nickel Plated

Fitting Body Material Nickel Plated Brass

Fitting Connection Type Tube

Fitting Material Brass

Fitting Shape Connector

Fitting Side A Connection Type Push-to-Connect

Fitting Side A Tube Outer Diameter 3/8 in

Fitting Side B Connection Type Push-to-Connect

Fitting Side B Tube Outer Diameter 3/8 in

For Tube OD 3/8 in x 3/8 in

For Tube Outside Diameter 3/8 in

Gasket Material FKM

Includes Pre-Applied Thread Sealant No

Max. Pressure 290 psi

Maximum Operating Pressure 435 psi

Maximum Operating Temperature 302 Degrees F

Minimum Operating Temperature 13 Degrees F

Overall Length 1 7/8 in

Package Quantity 1

Pipe Fitting Connection Type Tube

Release Ring Material FKM

Resistance Properties Abrasion-Resistant, Chemical-Resistant, Corrosion-Resistant

Specific Fitting Shape Straight Connector

Specific Pipe Fitting Shape Union

Standards 2011/65/EC, ASTM B733-04, DI: 2002/95/EC (RoHS), DI: 94/9/EC (ATEX), DI: 97/23/EC (PED), ISO 14743, RG: 1907/2006 (REACH), RG: 1935/2004/EC, RG: 21CFR (FDA Approved), UL 94 V-0, USDA NSF H1: Grease

System of Measurement Imperial

Temp. Range -4 Degrees to 250 Degrees F

Tube Fitting Material Nickel Plated Brass

Tube Size 3/8 in

Vacuum Rating 28 inHg
