Home / Nickel Plated Brass Male Connector, 5/32 in Tube Size

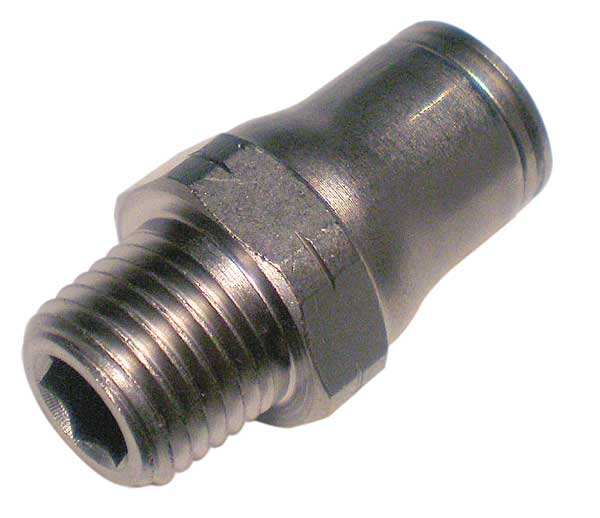

Nickel Plated Brass Male Connector, 5/32 in Tube Size

SKU
Brand Legris
Categories Raw Materials
Description Male Connector, Application Food Processing, Harsh Detergents, Non-Potable Water, Oils, Steam, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type MNPT, Fitting Side B Pipe Size 1/8 in, Fitting Side A Tube Outer Diameter 5/32 in, Fitting Material Brass, Fitting Thread Size 1/8, Color Silver, Includes Pre-Applied Thread Sealant No, Maximum Operating Pressure 435 psi, Maximum Operating Temperature 302 Degrees F, Overall Length 19/32 in
graingerSKU: , mscSKU: 68967603, zoro_no: G2643252, mongo_id: 65bbea0a22d7a989a998f7f1

Web Price

$9.11 / each

Qty

Minimum order: 2

Product Details

Application Food Processing, Harsh Detergents, Non-Potable Water, Oils, Steam

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Adapter

Color Silver

Compatible Tube Hardness 95 Shore A

Compatible Tube Material Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel

Connection Type Push-to-Connect x MNPT

Country of Origin (subject to change) Spain

End Connection Type Push-to-Connect, Threaded

Finish/Coating Nickel Plated

Fitting Body Material Nickel Plated Brass

Fitting Connection Type Tube x MNPT

Fitting Material Brass

Fitting Pipe Size 1/8 in

Fitting Shape Adapter

Fitting Side A Connection Type Push-to-Connect

Fitting Side A Tube Outer Diameter 5/32 in

Fitting Side B Connection Type MNPT

Fitting Side B Pipe Size 1/8 in

Fitting Thread Size 1/8

For Tube OD 5/32 in

For Tube Outside Diameter 5/32 in

Gasket Material FKM

Hex Size 11 mm

Includes Pre-Applied Thread Sealant No

Max. Pressure 435 psi

Maximum Operating Pressure 435 psi

Maximum Operating Temperature 302 Degrees F

Minimum Operating Temperature 13 Degrees F

Overall Length 19/32 in

Package Quantity 1

Pipe Fitting Connection Type Tube x MNPT

Pipe Size 1/8 in

Pipe Size (Fittings) 1/8

Pipe Size - Pipe Fitting 1/8 in

Release Ring Material FKM

Resistance Properties Abrasion-Resistant, Chemical-Resistant, Corrosion-Resistant

Specific Fitting Shape Straight Adapter

Specific Pipe Fitting Shape Connector

Standards 2011/65/EC, ASTM B733-04, DI: 2002/95/EC (RoHS), DI: 94/9/EC (ATEX), DI: 97/23/EC (PED), ISO 14743, RG: 1907/2006 (REACH), RG: 1935/2004/EC, RG: 21CFR (FDA Approved), UL 94 V-0, USDA NSF H1: Grease

System of Measurement Imperial

Temp. Range -4 Degrees to 302 Degrees F

Tube Fitting Material Nickel Plated Brass

Tube Size 5/32 in

Vacuum Rating 28 inHg
