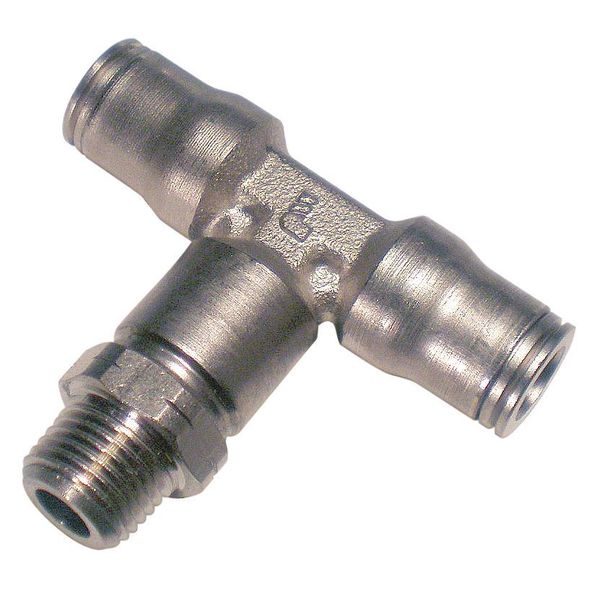

Nickel Plated Brass Male Branch Tee, 5/16 in Tube Size

Home / Nickel Plated Brass Male Branch Tee, 5/16 in Tube Size

Nickel Plated Brass Male Branch Tee, 5/16 in Tube Size

SKU
Brand Legris
Categories Raw Materials
Description Male Branch Tee, Application Food Processing, Harsh Detergents, Oils, Potable Water, Steam, Color Silver, Fitting Side A Connection Type MBSPT, Fitting Side B Connection Type Push-to-Connect, Fitting Side C Connection Type Push-to-Connect, Fitting Side A Pipe Size 1/4 in, Includes Pre-Applied Thread Sealant Yes, Fitting Side B Tube Outer Diameter 8 mm, Fitting Side C Tube Outer Diameter 8 mm, Fitting Material Brass, Maximum Operating Pressure 435 psi, Maximum Operating Temperature 302 Degrees F
graingerSKU: , mscSKU: 68967959, zoro_no: G0443554, mongo_id: 65bbe9ba22d7a989a9972e91

Web Price

$20.61 / each

Qty

Product Details

Application Food Processing, Harsh Detergents, Oils, Potable Water, Steam

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Tee

Color Silver

Compatible Tube Material Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel

Connection Type MBSPT x Push-to-Connect x Push-to-Connect

Country of Origin (subject to change) Spain

End Connection Type Push-to-Connect, Threaded

Finish/Coating Nickel Plated

Fitting Body Material Nickel Plated Brass

Fitting Connection Type Tube x Male BSPT

Fitting Material Brass

Fitting Pipe Size 1/4 in

Fitting Shape Tee

Fitting Side A Connection Type MBSPT

Fitting Side A Pipe Size 1/4 in

Fitting Side B Connection Type Push-to-Connect

Fitting Side B Tube Outer Diameter 8 mm

Fitting Side C Connection Type Push-to-Connect

Fitting Side C Tube Outer Diameter 8 mm

For Tube OD 8 mm x 8 mm

For Tube Outside Diameter 8 mm

Gasket Material FKM

Hex Size 14 mm

Includes Pre-Applied Thread Sealant Yes

Max. Pressure 435 psi

Maximum Operating Pressure 435 psi

Maximum Operating Temperature 302 Degrees F

Minimum Operating Temperature 13 Degrees F

Overall Length 47 mm

Package Quantity 1

Pipe Fitting Connection Type Tube x Male BSPT

Pipe Size 1/4 in

Pipe Size (Fittings) 1/4

Pipe Size - Pipe Fitting 1/4 in

Resistance Properties Abrasion-Resistant, Chemical-Resistant, Corrosion-Resistant

Specific Fitting Shape Adapter Tee

Specific Pipe Fitting Shape Branch Tee

Standards 2011/65/EC, DI: 2002/95/EC (RoHS), DI: 94/9/EC (ATEX), DI: 97/23/EC (PED), ISO 14743, RG: 1907/2006 (REACH), RG: 193, RG: 21CFR (FDA Approved), UL94 V-0

System of Measurement Imperial/Metric

Temp. Range -4 Degrees to 302 Degrees F

Tube Fitting Material Nickel Plated Brass

Tube Size 5/16 in

Vacuum Rating 28 inHg
