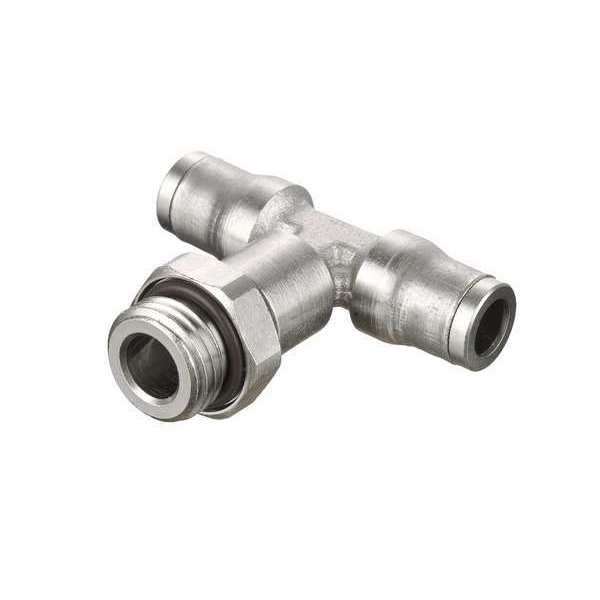

Metric All Metal Push-to-Connect Fitting

SKU
Brand Legris
Categories
Description Metric All Metal Push-to-Connect Fitting, Application Coffee Machines, Air, Food Processing, Grease, Lubricant, Medical Equipment, Misting, Non-Potable Water, Printing, Welding Robots, Color Silver, Fitting Side A Connection Type Metric, Fitting Side B Connection Type Push-to-Connect, Fitting Side C Connection Type Push-to-Connect, Fitting Side A Pipe Size 5 mm, Includes Pre-Applied Thread Sealant No, Fitting Side B Tube Outer Diameter 4 mm, Fitting Side C Tube Outer Diameter 4 mm
graingerSKU: , mscSKU: 68966498, zoro_no: G005386335, mongo_id: 65bbe7763aaddbd5a90974d4

Web Price

$20.24 / each

Qty

Product Details

Application Coffee Machines, Compressed Air, Food Process, Grease, In-Plant Automotive, Lubricant, Medical Equipment, Misting, Non-Potable Water, Printing, Welding Robots

Color Silver

Compatible Tube Hardness 95 Shore A

Compatible Tube Material Copper (when Grooved), Fluoropolymer, Polyethylene, Semi-Rigid Nylon, Stainless Steel (when Grooved)

Country of Origin (subject to change) Spain

End Connection Type Push-to-Connect, Threaded

Finish/Coating Nickel Plated

Fitting Body Material Nickel Plated Brass

Fitting Material Brass

Fitting Pipe Size 5 mm

Fitting Shape Tee

Fitting Side A Connection Type Metric

Fitting Side A Pipe Size 5 mm

Fitting Side B Connection Type Push-to-Connect

Fitting Side B Tube Outer Diameter 4 mm

Fitting Side C Connection Type Push-to-Connect

Fitting Side C Tube Outer Diameter 4 mm

Fitting Thread Size M5

For Tube OD 4 mm x 4 mm

For Tube Outside Diameter 4 mm

Includes Pre-Applied Thread Sealant No

Maximum Operating Pressure 435 psi

Maximum Operating Temperature 302 Degrees F

Minimum Operating Temperature -20 Degrees F

Overall Length 1 13/32 in

Package Quantity 1

Resistance Properties Abrasion-Resistant, Corrosion-Resistant

Specific Fitting Shape Adapter Tee

Standards 2011/65/EC, DI : 2002/95/EC (RoHS), Industrial - ISO 14743: DI: 97/23/EC (PED), RG: 1907/2006 (REACH), DI: 94/9/EC (ATEX ), RG: 193, RG: 21CFR (FDA), UL94 V-0

System of Measurement Metric

Vacuum Rating 755 mmHg
