Home / Leveling Set, Standard, D=9 Carbon Steel, D2= 32

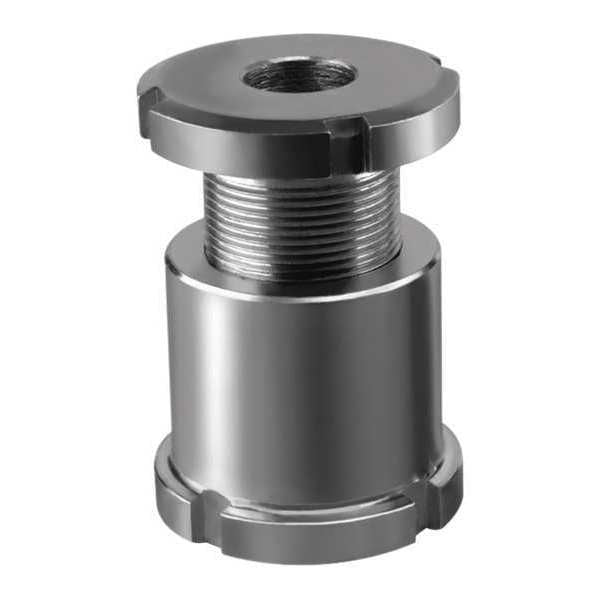

Leveling Set, Standard, D=9 Carbon Steel, D2= 32
Leveling Set, Standard, D=9 Carbon Steel, D2= 32

Leveling Set, Standard, D=9 Carbon Steel, D2= 32

  • Kipp
  • Raw Materials

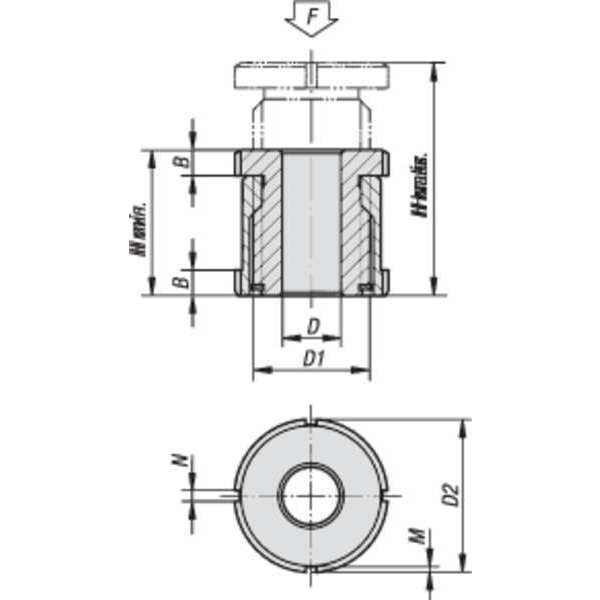

  • Adjustment Bolt, Bolt Material Steel, Bolt Finish Zinc Plated, Center Hole Dia. 9.00mm, Use with Screw Size M8, Bolt Thread Size M20x1, Bolt Outside Dia. 32.00mm, Min. Bolt Height 35.00mm, Max. Bolt Height 55.00mm, Shoulder Height 6.00mm, Spanner Notch Width 4.00mm, Spanner Notch Depth 2.00mm, Max. Down Force 65 kN
Web Price
$58.49 / each
Qty

Product Details

Zinc Plated
Steel
32.00mm
M20x1
9.00mm
Germany
55.00mm
65 kN
35.00mm
1
6.00mm
2.00mm
4.00mm
M8
