Home / 1" x 6 ft. Pipe Insulation, 3/4" Wall

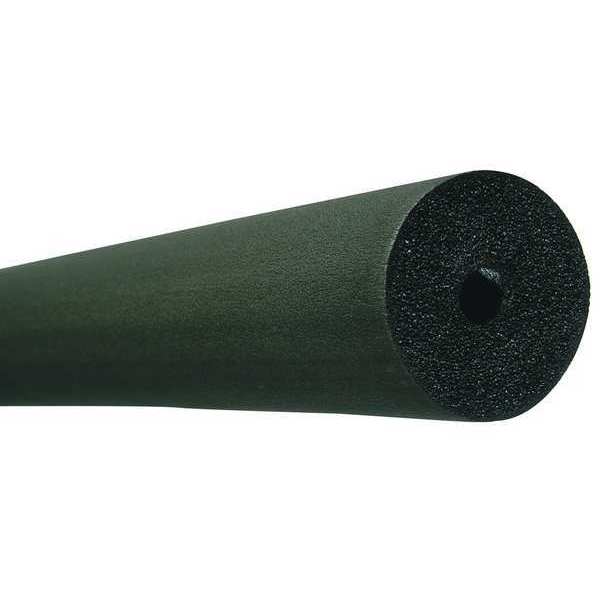

1" x 6 ft. Pipe Insulation, 3/4" Wall

SKU
Brand K-Flex Usa
Categories
Description Pipe Insulation, Insulation Material Buna-N Rubber/PVC, Installation Style Unslit, Inside Diameter 1 3/8 in, Wall Thickness 3/4 in, Overall Length 6 ft, Minimum Operating Temperature -297 Degrees F, Maximum Operating Temperature 220 Degrees F, Facing Material Unfaced, Color Black, R Value 4.9, Form Tube, For Copper Tube Size 1 3/8 in, For Pipe Size 1 in, Flame Spread Index 76, Smoke Developed Index 101, Foam Cell Type Closed, Plenum Rating Plenum Rated, Flexibility Flexible
graingerSKU: , mscSKU: , zoro_no: G1006634, mongo_id: 65bbe73d9a749db822728433

Web Price

$18.74 / each

Qty

Product Details

Approx. R Value 4.9

Clean Room Class Not Applicable

Color Black

Country of Origin (subject to change) Multiple

Fits Pipe Size 1 in

Fits Pipe Size - Pipe Insulation 1 in

Fits Tube Size 1 3/8 in

Flame Spread Index 76

Flexibility Flexible

Foam Cell Type Closed

For Iron Pipe Size 1

For Tube O.D. 1-3/8

Green Certification or Other Recognition GREENGUARD Certified

Green Environmental Attribute Product Contributes To Reducing Energy Consumption

Green Environmental Properties No CFCs, Product Contributes to Reducing Energy Consumption

Installation Style Unslit

Insulation Approx. R Value 4.9

Insulation Body Material NBR/PVC

Insulation Length 6 ft

Insulation Max. Thickness 3/4

Insulation Nominal I.D. 1 3/8 in

Insulation Temp. Range -297 Degrees F to 220 Degrees F

Insulation Type Unslit

Length 6 ft.

Material NBR/PVC Based Elastomeric

Package Quantity 1

Pipe Insulation Item Pipe Insulation

Plenum Rating Plenum Rated

R Value 4.9

Smoke Developed Index 101

Standards ASTM C 534 Type 1 Tubing; ASTM D 1056-00-2C1; New York City MEA 186-86-M Vol. IV; USDA Requirements, Meets requirements of ASTM C 411 (Test Method for Hot Surface performance of High Temperature Thermal Insulation); Meets requirements of UL 181 sections 11.0 and 16.0 (Mold Growth/Air Erosion), MIL-P-15280 For T (Tubing), UL 94-5V Flammability Classification (Recognition # E300774); ASTM E84 1-1/2 in 25/50 Tested according to UL 723 and NFPA 255; Complies with requirements of CAN/ULC S102-M88; FMRC 2006 Approval Guide Chapter 14 Pipe Insulation; NFPA No 101 Class A Rating; Meets requirements of NFPA 90A Sect 2.3.3 for Supplementary materials for Air Distribution Systems

Temp. Range -297 Degrees to 220 Degrees F

Tube Style Unslit

Wall Thickness 3/4 in

Wall Thickness - Insulation 3/4 in
