Home / 1" MNPT SPDT Flow Switch 4-120V 760 gpm

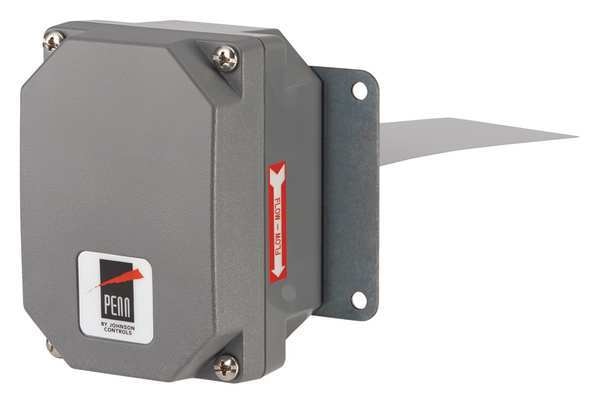

1" MNPT SPDT Flow Switch 4-120V 760 gpm

SKU
Brand Johnson Controls
Categories
Description Flow Switch, Flow Switch Type Paddle, For Pipe Size 1 in, 2 in, 3 in, 6 in, Housing Material Stainless Steel, Connection Size 1 in, Connection Type NPT, Flow Rate - Minimum 2.5 gpm, Flow Rate - Maximum 760 gpm, Media Temperature - Minimum -20 Degrees F, Media Temperature - Maximum 250 Degrees F, Switch Type SPDT, Switch Enclosure NEMA 4, Wetted Material Viton, Contact Rating (AC) 10 A @ 120V/360V @ 120V (Pilot Duty), Frequency 50 Hz, 60 Hz, Set Point Configuration Adjustable
graingerSKU: 35LZ20, mscSKU: , zoro_no: G0100016, mongo_id: 65bbe76a9a749db822737b6a

Web Price

$406.24 / each

Qty

Product Details

Ambient Temperature - Maximum 140 Degrees F

Ambient Temperature - Minimum -40 Degrees F

Application F261 Series Flow Switches Respond to Fluid Flow inLines Carrying Water, Ethylene Glycol, or Other Nonhazardous Fluids. These Models Also Work in Applications with Swimming Pool Water and Lubricating Oils.

Body Material Plastic with Stainless Steel Paddle

Compliance CE, RCM Compliant, UL

Connection Size 1 in

Connection Size (In.) 1 MNPT

Connection Type NPT

Contact Rating 10A @ 120V AC/360VA @ 120V AC Pilot Duty

Contact Rating (AC) 10 A @ 120V/360V @ 120V (Pilot Duty)

Country of Origin (subject to change) Mexico

Float Switch Contact Form SPDT

Flow Rate 2.5 gpm to 760 gpm

Flow Rate - Maximum 760 gpm

Flow Rate - Minimum 2.5 gpm

Flow Switch Type Paddle

For Pipe Size 1 in, 2 in, 3 in, 6 in

For Use With liquids

Frequency 50 Hz, 60 Hz

Horsepower - Maximum 1 hp

Housing Material Stainless Steel

Max. Ambient Temp. (F) 140 Degrees F

Max. Flow GPM 760 gpm

Max. Fluid Temp. (F) 250 Degrees F

Max. HP 1

Max. Pressure 290 psi

Max. Pressure (PSI) 290 psi

Media Temperature - Maximum 250 Degrees F

Media Temperature - Minimum -20 Degrees F

Min. Ambient Temp. (F) -40 Degrees

Min. Flow Rate (GPM) 2.5 gpm

Min. Fluid Temp. (F) -20 Degrees F

Overall Height 11.3 in

Overall Width 6 in

Package Quantity 1

Set Point Configuration Adjustable

Standards CE Certified, FCC to CFR47, Part 15, Subpart B, Class B Industry Canada (IC) to Canadian ICES-003, Class B limits, North America: cULus Listed, UL60730, File E6688

Switch Enclosure NEMA 4

Switch Type SPDT

Type Standard Flow

Voltage 4-120V

Wetted Material Viton

Wetted Materials Viton
