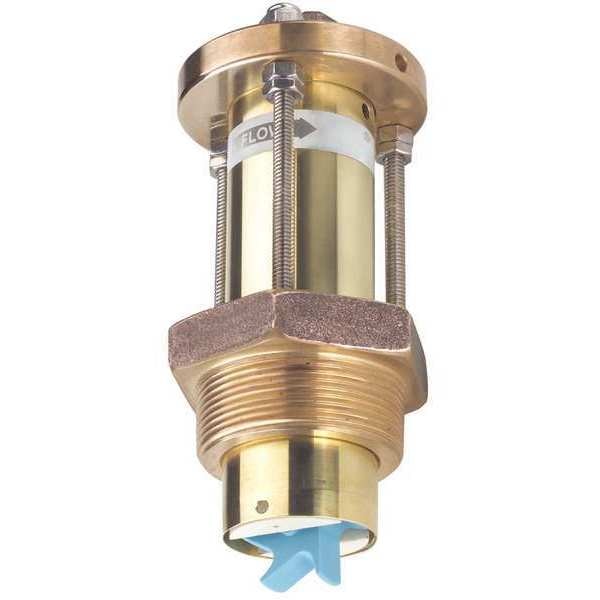

Flow Meter, Impeller, Brass

Home / Flow Meter, Impeller, Brass

Flow Meter, Impeller, Brass

SKU
Brand Impeller
Categories Raw Materials
Description Electronic Flowmeter, Product Type Insertion Style Flow Sensor, Flowmeter Type Paddlewheel, Accuracy +/-1 Percent, Connection Size 1/2 in, Connection Type Insertion, Compatible Flow Material Water, Media Temperature - Maximum 221 Degrees F, Media Temperature - Minimum 0 Degrees F, Viscosity - Maximum 32.6 SUS, Voltage - Maximum 35V DC, Housing Material PPS, Rotor Material Nylon, O-Ring Material EPDM, Seal Material EPDM, Shaft Material Tungsten Carbide

Web Price

$973.74 / each

Product Details

Accuracy +/-1%

Accuracy (%) +/-1

Cable Length 20 ft

Compatible Flow Material Water

Connection Size 1/2 in

Connection Type Insertion

Country of Origin (subject to change) United States

Display Type Not Applicable

Fitting Type Insertion

Flow Range 0.5 to 30 ft/sec

Flow Rate - Maximum 30 gpm

Flow Rate - Minimum 0.3 gpm

Flowmeter Type Paddlewheel

Fluid Temp. Range 0 Degrees to 221 Degrees F

Fluid Temp. Range (Deg. C) 0 to 105

Fluid Temp. Range (Deg. F) 0 to 221

For Pipe Size 3 in

Frequency - Maximum 200 Hz

Frequency - Minimum 3 1/5 Hz

Housing Material PPS

Includes Flow Rate Adjustment Knob No

Includes Pressure Gauge No

Includes Totalizer No

Media Temperature - Maximum 221 Degrees F

Media Temperature - Minimum 0 Degrees F

Mounting Orientation Horizontal

O-Ring Material EPDM

Operating Pressure - Maximum 400 psi

Output Type Standard Frequency Pulse

Overall Length 7.1 in

Overall Width 3 in

Package Quantity 1

Pipe Size 3

Product Type Insertion Style Flow Sensor

Pulse Rate Not Applicable

Repeatability 0.30%

Rotor Material Nylon

Seal Material EPDM

Sensor Type Paddlewheel

Shaft Material Tungsten Carbide

Special Features Forward Swept Impeller Shape with A Proprietary, Non-Magnetic Sensing Mechanism to Measure Liquids In A Variety of Industrial and Commercial Markets

Standards CE Certified

Type Impeller

Unit Of Measure Gallons

Viscosity - Maximum 32.6 SUS

Voltage - Maximum 35V DC

Wetted Material Brass, EPDM, Nylon, Tungsten Carbide, UHMWPE

Wetted Materials Brass, EPDM, Nylon, Tungsten, UHMWPE
