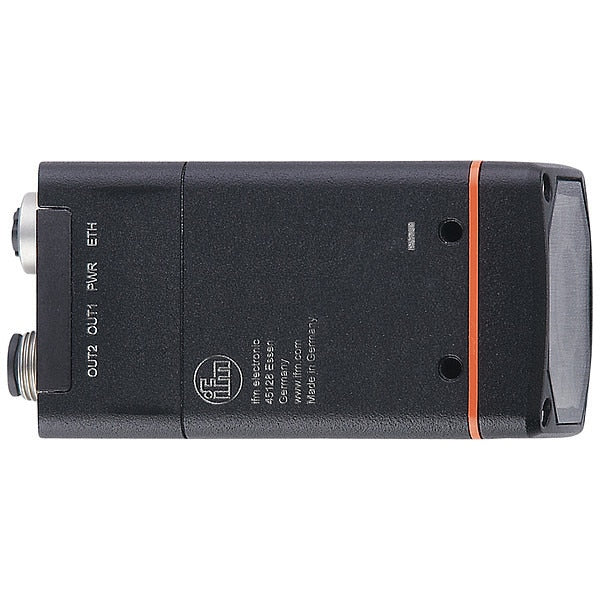

Multicode Reader, Infrared Light, 400 mA

Home / Multicode Reader, Infrared Light, 400 mA

Multicode Reader, Infrared Light, 400 mA

SKU
Brand Ifm
Categories Lighting Tools
Description Multicode Reader, Communication Interface Ethernet, Current Consumption 400 mA, Electrical Design PNP/NPN, Features Integrated Memory Stick, Several Codes and Text Lines Simultaneously, Housing Material Diecast Zinc Powder Coated, Image Resolution 1280 x 960 px, Lens Type Standard, Maximum Ambient Temperature 50 Degrees C, Maximum Reading Rate 40 Hz, Minimum Ambient Temperature -10 Degrees C, Number of Digital Inputs 1, Number of Digital Outputs 2, Operating Distance 85 mm
graingerSKU: , mscSKU: , zoro_no: G908127523, mongo_id: 65bbe6373aaddbd5a9014a69

Web Price

$2,494.99 / each

Qty

Product Details

(hidden) product type builder O2I501 IFM

Communication Interface Ethernet

Country of Origin (subject to change) Germany

Current Consumption 400 mA

Dimensions 86 mm x 45 mm x 45 mm

Electrical Design PNP/NPN

Features Integrated Memory Stick, Several Codes and Text Lines Simultaneously

Field of View @ Operating Distance 152 x 114 mm @ 500 mm, 302 x 227 mm @ 1000 mm, 92 x 69 mm @ 300 mm

Housing Material Diecast Zinc Powder Coated

Image Resolution 1280 x 960 px

Image Resolution (px) 1280 x 960 px

Legible Fonts Document, Industrial, OCR-A, OCR-B, Pharma, Semi, Universal

Lens Type Standard

Light Type Infrared

Max Reading Rate 40 Hz

Maximum Ambient Temperature 50 Degrees C

Maximum Reading Rate 40 Hz

Minimum Ambient Temperature -10 Degrees C

Number of Digital Inputs 1

Number of Digital Outputs 2

Operating Distance 85 mm

Operating Voltage 18 to 30V DC

Operating Voltage DC 18 to 30 V DC

Overall Depth 45 mm

Overall Length 86 mm

Overall Width 45 mm

Package Quantity 1

Parameter Setting Teach Button

Protection Features IP65, Overload Protection, Protection Class III, Reverse Polarity Protection, Short Circuit Protection

Protocol EtherNet/IP

Standards CE, Complies with 21 CFR 1040, EAC, EMC EN 61000-6-4, EN 60068-2-27, EN 60068-2-6, EN 61000-6-2, EN 61010-2-201, EN 62471, EN/IEC 60825-1:2007, EN/IEC60825-1:2014, UKCA

Transmission Rate 10 MBps, 100 MBps

Type of Lens Standard

Type of light Infrared Light

Wavelength 850 nm
