Home / Receptacle, 4-4/0, Orge, Female, Taper

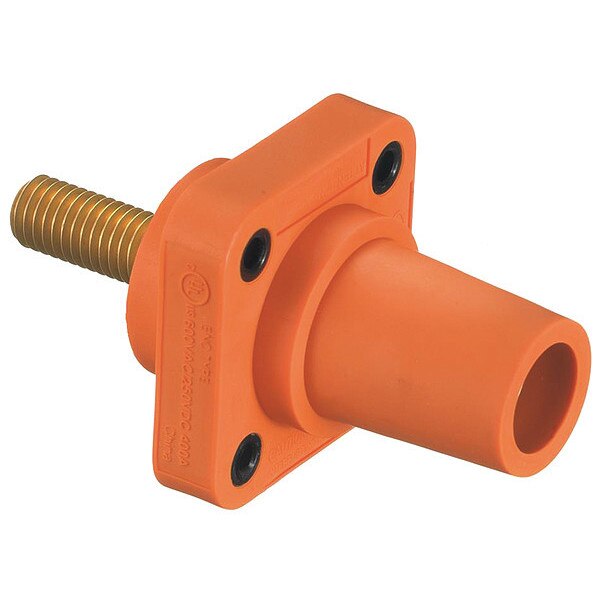

Receptacle, 4-4/0, Orge, Female, Taper

Receptacle, 4-4/0, Orge, Female, Taper

  • Hubbell
  • Adhesives, Epoxy & Sealants
  • Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Female, Housing Color Orange, Housing Material Thermoplastic Elastomer, Maximum Wire Size 4/0 AWG, Minimum Wire Size 4 AWG, Phase Single, Voltage Rating 250V DC, 600V AC, Contact Material Brass, End Type Taper Nose, Flange Shape Square, NEMA Enclosure Rating 12, 3R, 4X, Standards ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed, Terminal Connection Type Threaded Stud

    graingerSKU: 20TR59, mscSKU: , zoro_no: G6175373, mongo_id: 65bbea1022d7a989a9993902

Web Price
$59.86 / each
Qty

Product Details

400 A
400 A
300/400AC/DC
4 to 4/0
Orange
16
Brass
Straight
China
Taper Nose
UL1691
Female
Thermoplastic Elastomer
Threaded Stud
12, 3R, 4X
1-Pole
1-Wire
4.1 in
2.2 in
1
Single
#4 to 4/0
For Male Plugs
16
Taper Nose
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Threaded Stud
Threaded Stud
Receptacle
250V DC, 600V AC
